2mm² Portable Pneumatic Wire Stripping Machine

JCW-S05

0.4 seconds cycle time

Wires up to 2mm² [ AWG 14 ]

Stripping length up to 20 mm

Compact, lightweight, space-saving

Single wire, glass optical fiber

Stranded wire, solid wire

PUR, PVC, Teflon, Tefzel, etc

Inquire Now

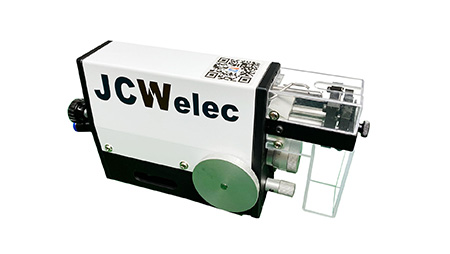

Compact Pneumatic Wire Stripping Machine

JCW-S05 Pneumatic Wire Stripping Machine

Mobile wire stripper to replace hand tool

The JCW-S05 pneumatic wire stripping machine is with compact but robust design, a compressed air connection is all that needs to operate the JCW-S05 pneumatic wire stripping machine. This wire stripper is an ideal entry-level model for wire processing. It's the best choice to replace hand tools with increased productivity and improved stripping quality. This wire stripping machine is suitable for both discrete wire and inner wires of multi-core up to 2mm².

Easy to use

The JCW-S05 pneumatic wire stripping machine uses a universal V-blade, which is capable to process various cross-sections for PVC, PE, or PP insulation with an outer diameter of up to 3.2mm.

The machine can perform both full and partial stripping by simple adjustment. The cutting depth, stripping position and pull-off length can be adjusted with three dials easily and precisely.

The JCW-S05 pneumatic wire stripper is activated by the trigger sensor, the wire processing is started once the wire touches the trigger sensor.

Model	JCW-S05 Pneumatic Wire Stripping Machine
Function	Full stripping, partial stripping, cut diameter, strip position, pull-off length
Raw material	PVC, Teflon, Silicone, Low halogen, Fiber glass, etc
Conductor cross-sections	0.03 - 2.08 mm² [ AWG 32 - 14 ]
Wire diameter	Max 3.2 mm
Stripping length	1 - 20 mm
Full strip increment	0.5 mm
Partial strip increment	2 mm
Cycle time	0.4 S
OEM	Yes
Air supply	0.55 - 0.8 MPa ( clean and dry air )
Dimensions	L 265 x W 70 x H 135 mm
Weight	2 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
