Semi-automatic Wire Stripping and Twisting Machine

JCW-CS01

Electric pneumatic driven

Wire stripping

High-speed rotate twisting

Stripping length 3 - 45 mm

Cable range up to 5 mm²

Foot pedal control

PVC, Teflon, Silicone, Low halogen, Fiberglass cables

Inquire Now

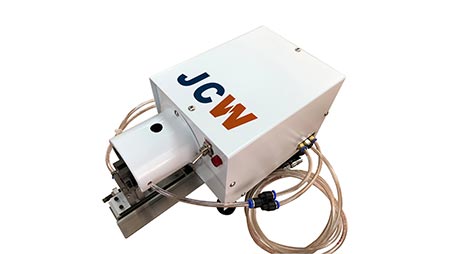

Semi-auto Wire Stripping Twisting Machine

JCW-CS01 Wire Stripping and Twisting Machine

The ultra-compact semi-automatic wire stripping and twisting machine JCW-CS01 is pneumatic and electric-driven. The compact design takes up less space.

Operation of the JCW-CS01 wire strip and twist machine is simple, the stripping length and cutting depth can be changed quickly by adjusting the rod and air pressure.

The twisting direction is switchable in both clockwise and anti-clock.

Model	JCW-CS01 Wire Stripping and Twisting Machine
Function	Wire end stripping, Conductor twisting, Full stripping, Partial stripping, Cut depth
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.1 - 5 mm² [ AWG 26 - 10 ]
Stripping length	3 - 45 mm
Power supply	AC 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.6 MPa [ clean and dry air ]
Dimensions	L 320 x W 180 x H 170 mm
Weight	12 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
