JCW-323
Mini size, portable and ergonomic design, comfortable hand feel
Perfect soft wire twisting tool, AWG30 - AWG11
Short cycle time, each cycle takes 0.5s

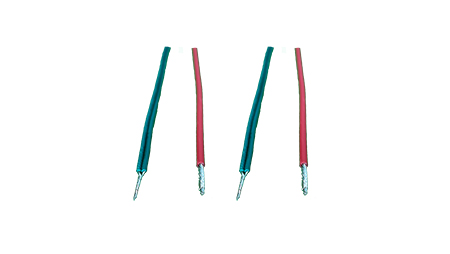

Tight and neat twisting. Avoid conductor missing
Take the place of manual work
Self-adaptive 12mm nozzle for different wires
Wire Twist Tool
| Model | JCW-323 Versatile Handheld Wire Twisting Tool |
| Function | Stranded wire, cable tie, button, foot pedal |
| Capacity | Total conductor cross-sections 0.05 - 4 mm² max |
| Twisting length | 5 - 30 mm [ Ideal range 10 - 15 mm ] |
| Cycle time | 0.5 second [ Recommend 0.2 - 1.0 second ] |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Dimensions | D 51 x L 248 mm. Holding position diameter 30 mm |
| Weight | 0.535 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
