Servo Motorized 14mm O.D Multicore Cable Cut & Strip Machine

JCW-CS07

Discontinued model. After-sales service is still available.

Servo motorized cutter head

Rollers open and close simultaneously

Uniform center points of rollers, guides, and cutter blades

Roller distance and pressure all programmable via touchscreen

Wire run-out sensor gives machine stop signal

7" color touchscreen simplify programming

Automatically calibrate the cutting length

Heavy-duty cable up to 14 mm O.D

Inquire Now

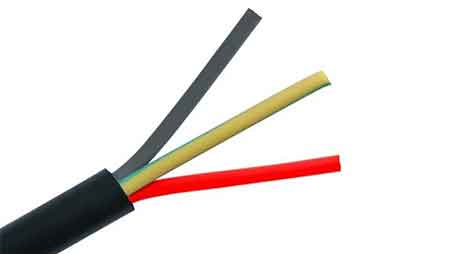

Flexible Multicore Insulated Cable Processing

Servo Motorized Belt Feed Automatic Cable Cut & Strip Machine JCW-CS07

Focus on multicore cable, high precision on long cutting and stripping

Specialist in processing multicore cable

The JCW-CS07 is designed for cutting and stripping multicore cable, it perfectly suits long cutting length. Servo motorized belt feeding system guarantees the feeding precision, keeps stable clamping during the whole processing, and avoids causing any damage to the outer jacket. Excellent performance will meet the strict requirements of high-demand customers.

The JCW-CS07 cable cutting and stripping machine uses 7 axis motion control card to control the rollers precisely, the roller distance and pressure are all adjustable via a 7" color touch screen. Upper and lower rollers move simultaneously, no matter cable is big or small, the center points of the cable are always parallel with the guide tube and cutter blade.

Easy to use

The standard model of this cutting and stripping machine comes with an English display, the display language is customizable. A user-friendly interface and color touchscreen make the operation so accurate and simple.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- This cutting and stripping machine features an automatic one-touch calibration function for cutting length.

- Wire run-out sensor gives the machine a stop signal while the wire is used out.

- Quickly change guide tubes and cutter blades.

- Transparent safety cover with sensor

Various options for specific applications

- Wire unwind & pre-feed machine, load range from 15 to 1500 KG

- Robot arm controlled by CS07

- Cable stacker, 1 meter to 6 meters

- V-blade, Multi-V blade, Radius blade

Model	JCW-CS07 Servo Motorized Belt Feed Multicore Cable Cut & Strip Machine
Function	Multicore cable, Single wire, Wire measuring, Cut into length, Full stripping, Partial stripping, Wire lack sensor, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable diameter	14 mm
Conductor cross-sections	0.1 - 16 mm² [ AWG 28 - 6 ]
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Leading ( right ) side: 400 mm [ partial stripping ]
Stripping length	Trailing ( left ) side: 180 mm [ partial stripping ]
Production rate	1200 pcs/h
Data library	100 programs
Cutter head	Servo motorized system
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable prefeeder, robot arm, cable stacker
Power supply	AC 220 V ± 10%, 50 / 60 Hz [ 110V on request ]
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 700 x W 560 x H 450 mm
Dimensions	Wire straightener: 350mm
Weight	80 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
