Fully Servo Motorized 16mm O.D. Battery Cable Cutting and Stripping Machine [ 50 mm² ]

JCW-CS07C

Reinforced fully servo motorized machine

Rollers open and close simultaneously

Uniform center points of rollers, guides, and cutter blades

Roller distance and pressure all programmable via touchscreen

Wire run-out sensor gives machine stop signal

7" color touchscreen simplify programming

Automatically calibrate the cutting length

Heavy-duty cable up to 16 mm O.D

Inquire Now

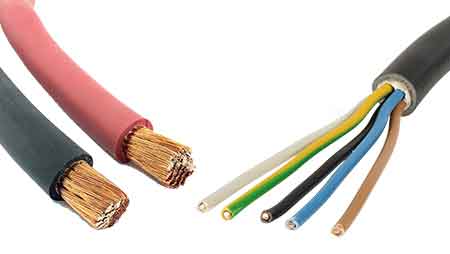

Versatile-Cable-Cutting-Stripping-Machine

Fully Servo Motorized Belt Feed Automatic Cable Cut & Strip Machine JCW-CS07C

Focus on heavy-duty cable, high precision on long cutting and stripping

Specialist in processing heavy battery cable

The JCW-CS07C is designed for cutting and stripping battery cable, it perfectly suits long cutting length. Different from inferior machines that you always see on the internet, the JCW-CS07C adopts servo motors instead of stepper motors, on both belt feeding system and cutter system, which guarantees reliable precision on cable feeding length and cutting depth. Excellent performance will meet the strict requirements of high-demand customers.

The JCW-CS07C cable cutting and stripping machine uses 7 axis motion control card to control the rollers precisely, the roller distance and pressure are all adjustable via a 7" color touch screen. Upper and lower rollers move simultaneously, no matter cable is big or small, the center points of the cable are always parallel with the guide tube and cutter blade.

Different from other inferior machines you always see, we guarantee high reliability to all JCW machines with 14 years of real manufacture capability, continuous improvement, and professional experience.

Easy to use

Standard JCW-CS07C cable cutting and stripping machine comes with an English display, the display language is customizable. A user-friendly interface and color touchscreen make the operation so accurate and simple.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- This cutting and stripping machine features an automatic one-touch calibration function for cutting length.

- Wire run-out sensor gives the machine a stop signal while the wire is used out.

- Quickly change guide tubes and cutter blades.

- Transparent safety cover with sensor

Various options for specific applications

- Wire unwind & pre-feed machine, load range from 15 to 1000 KG

- Robot arm controlled by CS07C

- Cable stacker, 1 meter to 6 meters

- V-blade, Multi-V blade, Radius blade

Model	JCW-CS07C Reinforced Fully Servo Motorized Cable Cut & Strip Machine
Function	Multicore cable, Single wire, Wire measuring, Cut into length, Full stripping, Partial stripping, Wire lack sensor, Length correction, Safety cover sensor
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable diameter	16 mm
Conductor cross-sections	Max 50 mm² [ AWG 0 ]
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Leading ( right ) side: 400 mm [ partial stripping ]
Stripping length	Trailing ( left ) side: 180 mm [ partial stripping ]
Production rate	1300 pcs/h
Data library	100 programs
Feeding unit	Servo motorized belt system
Cutting unit	Servo motorized cutter head
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable prefeeder, robot arm, cable stacker
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz ]
Dimensions	Machine: L 830 x W 570 x H 470 mm
Dimensions	Wire straightener: 350mm
Weight	95 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
