12mm O.D. Automatic Battery Cable Cutting Machine [ 8 Rollers ]

JCW-CS05

4th generation powerful and precise cut & strip machine

AV battery cable, multiconductor cable

PVC, Teflon, Silicone, Low halogen, Fiberglass cables

Cable range up to 12mm O.D or 25sqmm

7" color touch screen, user-friendly interface

8 rollers driven by high torque hybrid step motors

Fully programmable saves 100 programs

Fully-covered safety guard is on request

Inquire Now

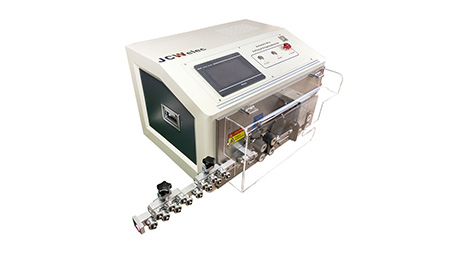

Roller Feeding Type 25sq Battery Cable Cut Strip Machine

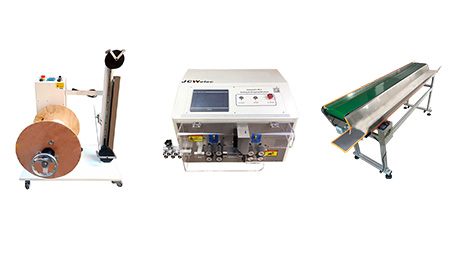

Automatic Cable Cut Strip Production Line

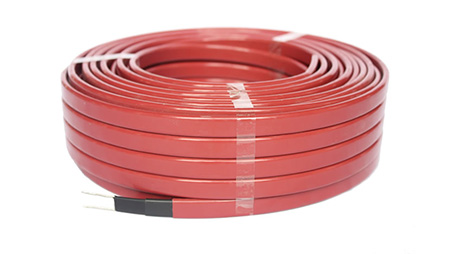

Sliicone Rubber Heating Tape Processing

Heavy-duty Automatic Cable Cutting and Stripping Machine JCW-CS05

4th generation, ultra-high cost-effective, precise processing, reliable model

Reliable and Precise

As a star model of JCWelec's cable cutting and stripping machine, the JCW-CS05 has been impressive since the beginning. Its comprehensive capacity covers both single wire and multi-conductor cable. The proven high-performance and affordable prices make the JCW-CS05 the leader in the same class.

In 2021, we completed the upgrading of the 4th generation of JCW-CS05 cable cut and strip machine, optimizing the mechanical structure and software programs, the machine is more reliable and more functional. The new machine uses higher torque stepper motors, offers higher cutting force and higher production speed than the last generation.

Easy to use

Whether novice or professional, you can quickly use the JCW-CS05 wire cutting & stripping machine proficiently.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- This cutting and stripping machine features an automatic one-touch calibration function for cutting length.

- Wire run-out sensor gives the machine a stop signal while the wire is used out.

- Quickly change guide tubes and cutter blades.

- Each CS05 cut & strip machine comes with a complete set of guide tubes, spare cutter blade, local power cord, and silicone touchscreen pen.

Various options for specific applications

- Wire unwind & pre-feed machine, load range from 15 to 1000 KG

- Robot arm controlled by CS05

- Cable stacker, 1 meter to 6 meters

- V-blade, Multi-V blade, Radius blade, Flat blade

Model	JCW-CS05 Heavy-duty 12mm O.D. Automatic Battery Cable Stripping Machine
Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.1 - 25 mm², 12 mm diameter
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 250 mm [ partial stripping ]
Stripping length	Rear ( left ) side: 120 mm [ partial stripping ]
Middle strip	13 sections
Production rate	1000 pcs/h by 100mm wire length
Data library	100 programs
Flat cable	Slit and strip, by changing straightener, guide and blade
Multicore cable	Outer jacket stripping
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	8 rollers
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 650 x W 580 x H 450 mm
Dimensions	Wire straightener: 350mm
Weight	70 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
