Universal Belt Feed Wire and Cable Processing Machine [ 0.1-25 / 35mm² ]

JCW-CS05A

Upgraded version of CS05

One machine for all cables from 0.1 to 25 or 35sqmm

High-quality belt-feeding system

12 rollers driven by high torque hybrid step motors

AV battery cable, multiconductor cable, PVC, rubber, etc

Fully-covered safety guard is optional

Inquire Now

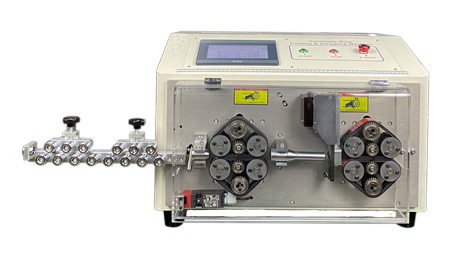

Fully Covered Guard, Interlock Sensor [ On request ]

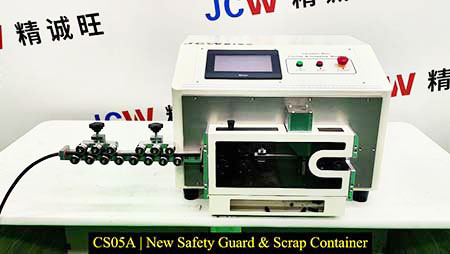

Metal Made Safety Guard & Scrap Container [ On request ]

The JCW-CS05A series is an upgrade of the JCW-CS05. It uses a belt feeding system to replace the roller feeding system, which is particularly suitable for processing multicore sheathed cable and high-demand single-core wires.

The belt feeding system can avoid the situation where the roller system leaves marks on the surface of the wire insulation, and at the same time, the accuracy of the wire feeding length is greatly improved.

The upper and lower rollers open and close simultaneously to ensure that the center of the rollers is parallel to the center of the blade.

The high-torque stepper motor ensures the high cutting force.

Model	JCW-CS05A Belt Feed 25-35mm² Cable Cable Processing Equipment
Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	25SQ MODEL: 0.1 - 25 mm², 12 mm O.D
Conductor cross-sections	35SQ MODEL: 0.1 - 35 mm², 14 mm O.D
Guide inner diameter	4 / 6 / 8 / 10 / 12 / 14 ( 16 ) mm
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 100- 250 mm
Stripping length	Rear ( left ) side: 70-120 mm
Middle strip	13 sections
Production rate	25SQ MODEL: 1000-1500 pcs/h by 100mm wire length
	35SQ MODEL: 800-1000 pcs/h by 100mm wire length
Data library	100 programs
Flat cable	Slit and strip, by changing straightener, guide and blade
Multicore cable	Outer jacket stripping only
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	12 rollers driven belt system
Blade type	V-blade, radius blade
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt
Rated power	1800 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 650 x W 580 x H 450 mm
Dimensions	Wire straightener: 350mm
Weight	75 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
