Ultrasonic Welder for Wire丨Ultrasonic Wire Splicer

JCW-TS204

High-quality imported ultrasonic transducer, powerful and stable

Fast welding, high energy efficiency, single cycle within 0.6 seconds

Easy to operate, no need to add auxiliary materials

Support multiple welding modes

Prevent empty welding and effectively prevent damage to the welding head

High-definition LED display, intuitive data, real-time monitoring

Inquire Now

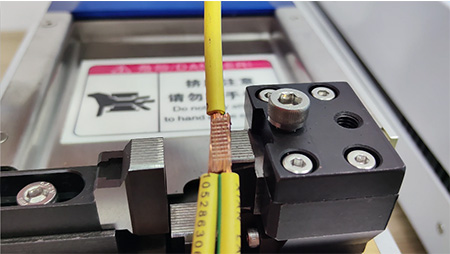

Ultrasonic Wire Splicing Machine

The JCW-TS204 is a portable ultrasonic soldering machine with an integrated design. It has an exquisite appearance, lightweight, compact structure, safe and simple operation, and low maintenance cost.

The JCW-TS204 ultrasonic welding machine can provide enterprises with efficient welding methods and reduce production costs. It is suitable for wire harness welding ranging from 0.5mm² to 30mm² copper wire/aluminum wire and is widely used in many fields such as automobiles, instrumentation, communication equipment, home appliances, etc.

Model	JCW-TS204 Ultrasonic Welder for Wire丨Ultrasonic Wire Splicer
Work frequency	20 kHz
Rated power	2000W [ 3000 - 5000 W optional ]
Cross section area	0.5 ~ 20 mm² [ max 50 mm² optional ], copper & aluminum
HMI	4.3" color touchscreen
Cycle time	approx 0.6 seconds, depending on wire sizes
Welder lifetime	100,000 times welding
Optional accessory	Computer & Software
Power supply	AC 220V ± 10%, 50 / 60 Hz
Air supply	0.3 - 0.6 MPa ( clean and dry air )
Dimensions	L 573 x W 220 x H 190 mm
Dimensions	L 345 x W 475 x H 155 mm
Weight	25 + 10 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
