25mm² Servo Motorized Solid Core Cable Cut Strip to Bend Machine

JCW-CS11B

Fully programmable servo motorized wire bending machine

No damage to insulation and conductor

Smooth bending to ensure the conductive effect

7" touchscreen, user-friendly interface

Bending degrees 0 - 150

Cable range up to 25 mm²

Inquire Now

Patent Wire Cutting Stripping and Bending Machine JCW-CS11B

Heavy-duty hard wire up to 25mm²

Wire bending is widely used in power distribution cabinets. Good wire bending can save the space of the power distribution cabinet, save the wires, make the wires arranged neatly, meanwhile will not cause any damage to the wires or conductors, and eliminate any hidden dangers.

JCW-CS11B is an automatic stripping and bending machine, servo motors, and 6 rollers feeding system guarantee precise wire feeding and cutting, robust cutter head specially used for big wires up to 25mm². All processing parameters, such as cutting length, stripping length, and bending parameters can be input accurately via the 7" color touch screen.

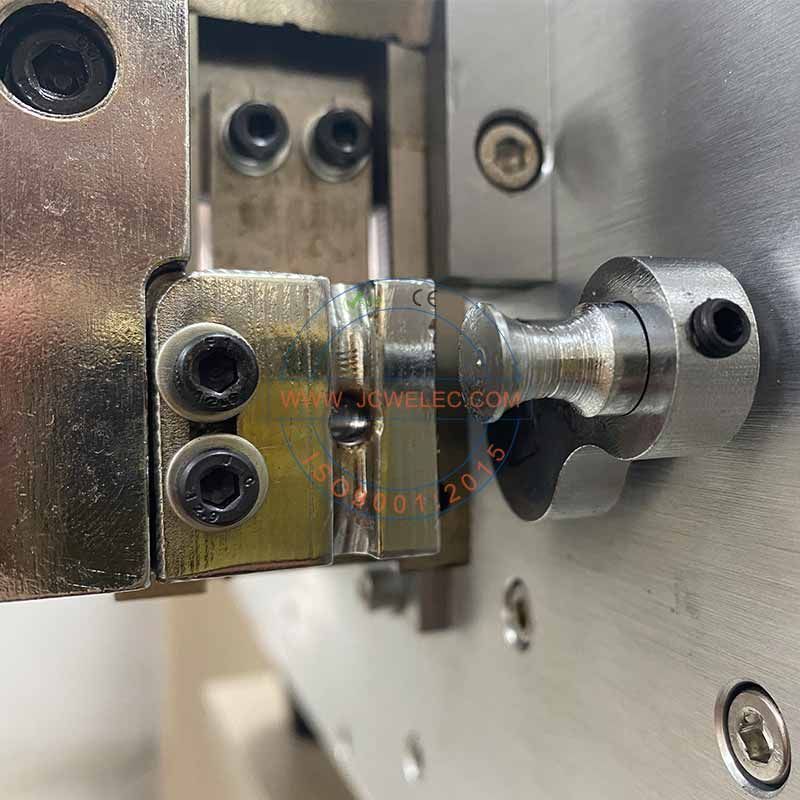

The patent unique bending device provides a rounded bending effect instead of a sharp bending at an absolute angle, ensuring that it will not cause any damage to the insulator and conductor of the wire.

JCW-CS10A-BENDING-DEVICE

Model	JCW-CS11B Automatic Wire Cutting Stripping and Bending Machine
Function	Wire end stripping, Wire bending, Cut depth, Horizontal bending, 30°-90°, Data library
Conductor cross-sections	4 - 25 mm² [ AWG 20 - 9 ]
Cutting length ( L )	0.1 - 99999 mm
Stripping length	Max 50 mm
Bending numbers	16
Bending degree	0 - 150
Data library	100 programs
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 780 x W 650 x H 530 mm
Weight	90 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
