Powerful servo motor
7" touchscreen, easy operation
Fully programmable, saving crimping height
Transparent safety guard protects operator
Adjustable terminal positioning device
Hexagon applicator with customizable crimping width
JCW-20TS
Powerful servo motor
7" touchscreen, easy operation
Fully programmable, saving crimping height
Transparent safety guard protects operator
Adjustable terminal positioning device
Hexagon applicator with customizable crimping width

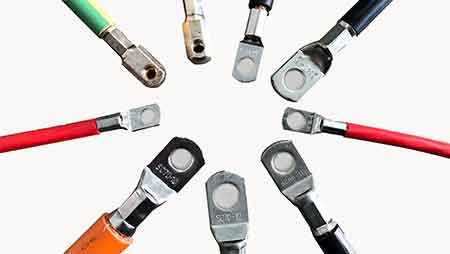

Hexagonal Crimping Profile
Model | JCW-20TS 120SQMM Servo Model Hexagonal Lug Crimping Machine |
Function | Servo motor control, Uninsulated tubular terminal, Hexagonal crimping, Crimp height adjustment on-screen, Data library, Freestanding model, Easy to move |
Cable range | 10 - 120 mm² [ Min AWG 10 ] |
Crimping force | 150 KN |
Crimping length | 12.5 mm [ other lengths on request ] |
Rated power | 3800 W |
OEM | Yes |
Activation | Foot pedal |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Dimensions | L 685 x W 375 x H 915 mm |
Weight | 190 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
