JCW-HSB30G

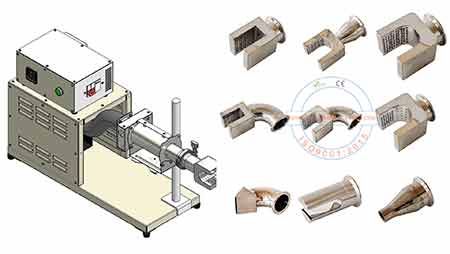

Various air nozzles are available
Compact, space-saving design
Precise temperature control and efficient heating
PE, PVC, Adhesive lined heat shrinkable tubing
Multi-fiber thermal insulation cotton
Heating temperature 400℃, accuracy is ± 3℃
Overheating and overload protection
Power failure protection device

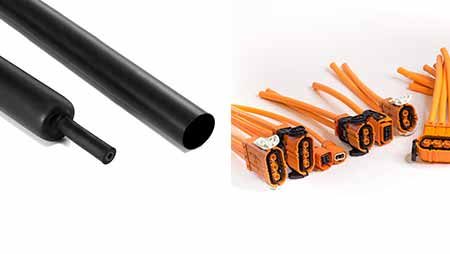

Vehicle Electrification High Voltage Cable
| Model | JCW-HSB30G Workbench Heat Shrink Sleeve and Tubing Heating Gun |
| Round nozzle | 25 / 50 mm selectable |
| U-shape nozzle | Optional |
| Heating mode | Resistance wire |
| Working life | ＞ 10000 h |
| Temperature display | Digital |
| Temp. controller | solid-state relay (SSR) |
| Centrifugal fan | 50 W, 198m³/h, 298pa |
| Rated power | 3050 W |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Dimensions | L 690 x W 380 x H 500 mm |
| Weight | 12 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
