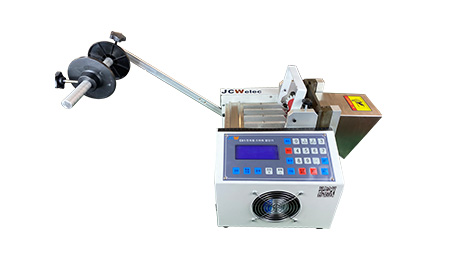

JCW-C01ECO Economical Tubing Cutting Machine

Excellent price/performance ratio


Specialist heat shrinkable tubing cutting machine

The JCW-C01ECO tube cutting machine is a perfect solution for cutting the heat shrink tube and ribbon cable. It can cut various tubings at the same time with high efficiency, the max cutting length is 100mm.


The JCW-C01ECO cut to length machine offers precise digital control of cut to length and quantity, it's ideal to increase efficiency, improve quality and save on labor costs. The cutting tolerance is 0.02 x cutting length.


This versatile cut to length machine also works in other fields: velcro (hook & loop) tape, insulation wires, plastic tubing, films, bootlaces, soft wires, plastic zippers, copper wires, labels, hoses.


Easy operation

Each JCW-C01ECO tubing cutting machine comes with an English keyboard, it can be operated well by anyone with no training. The cutting speed, feeding speed, cutting length, batch pause, total quantity, etc. are all programmable easily.


The blade is made of high-speed steel, high-quality material minimizes wear.

ModelJCW-C01 ECO Electric Cut to Length Machine
FunctionCutting speed, tubing guide, multi-piece cutting
Raw materialPVC, Teflon, Low halogen, Fiber glass, etc
Cutting width100 mm
Cutting length ( L )0.1 - 99999 mm
OEMYes
Power supplyAC 110 - 220V + 10 %, 50 / 60 Hz
DimensionsL 440 x W 340 x H 390 mm
Weight24 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
