Wire Stripping Twisting & Bootlace Ferrule Crimping Machine [ 4mm² ]

JCW-F1 Automatic Insulated End Sleeves Stripping and Crimping Machine

Compact, lightweight, precise, robust, simple operation

Reliable and precise

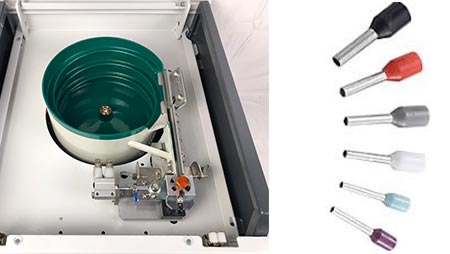

The JCW-F1 automatic stripper crimper machine by JCW is an ideal electro-pneumatic controlled stripping & crimping machine for processing insulated end sleeves (ferrule). It provides efficient processing of loose wire end sleeves with plastic collars in different lengths. The use of premium components in combination with a robust construction ensures reliable operation. The JCW-F1 stripping and crimping machine twists the conductor after stripping, guaranteeing precise insertion no matter your ferrule is with Easy Entry or not.

Easy to use

The JCW-F1 stripping and crimping machine covers bootlace ferrule at different cross-sections ranging from ( 0.3 )0.5 to 4.0 mm². Cross-sections and stripping lengths can be changed quickly and precisely via a 4.3" color touchscreen with no special tooling requirement.

The JCW-F1 strip and crimp machine is equipped as standard with tooling for cross-sections of 0.5, 0.75, 1.0, and 1.5 mm². By fast changeover on crimp kits, you can process 2.5 and 4.0 mm² perfectly. The change will only take some minutes.

This automatic stripping and crimping machine features a program storage function and can store 18 groups of processing data.

Cost-effective

Thanks to mass production, we have minimized the production cost of the JCW-F1 stripping and crimping machine, making it an affordable and cost-effective model in the same class.

Each JCW-F1 stripper crimper comes with a full set of vibrate bowls, crimp kits, English interface, and touchscreen pencil.
