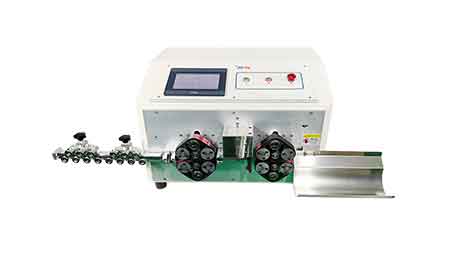

Belt Feed 16SQ Cable Cutting Machine

JCW-CS04B

Upgraded version of CS04

Safety guard & sensor are standard accessories

One machine for all cables from 0.1 to 16sqmm

High-quality belt-feeding system

100 recipe with individual names

Fully-covered safety guard is optional

Inquire Now

Belt Feeding Type 16sq Battery Cable Cutting Machine

The model JCW-CS04B is a new cable cutting and stripping machine, it's updated based on the JCW-CS04. Different from old model, the CS04B uses high-quality belt feeding system, but not roller feeding system. The wire guide tube can swing up and down to provide a longer tail-end stripping length. When feeding wires and stripping insulation, the right rollers can be opened and closed simultaneously to provide a longer front-end stripping length.

The machine comes standard with cable guide tubes with an inner diameter of 4-10mm. With the guide swing function, the JCW-CS04B machine can process thin wires and thick cables range from 0.1 to 16sqmm. This multifunctional wire stripping machine also provides a storage function for 100 recipes with individual names.

Model	JCW-CS04B Belt Feed 16mm² Cable Cable Processing Equipment
Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	16 mm²
Guide inner diameter	4 / 6 / 8 / 10 mm
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 100 mm
Stripping length	Rear ( left ) side: 70 mm
Middle strip	13 sections
Production rate	1200-1800 pcs/h by 100mm wire length
Data library	100 programs
Multicore cable	Outer jacket stripping only
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	12 rollers driven belt system
Blade type	V-blade / radius blade
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt
Rated power	1600 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 650 x W 580 x H 450 mm
Dimensions	Wire straightener: 350mm
Weight	65 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
