Cable Shield Braid Brushing Machine

JCW-322

Use for de-braiding cable shields

Brushing length up to 80 mm max

Two-way rotation to make a folding

Adjustable brush spacing for max 25 mm cable

Brush speed adjustment for shield de-interlacing

Quickly changeable brushes

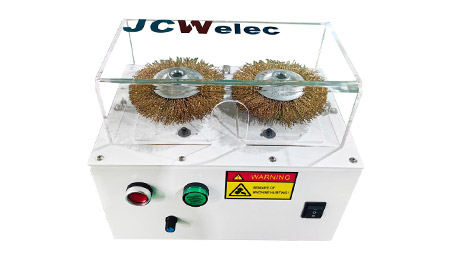

Various brushes materials for respective cable type

Lightweight, space-saving design

Inquire Now

Braided Shield Brushing to Twisting Solution

How to untwist braided shield

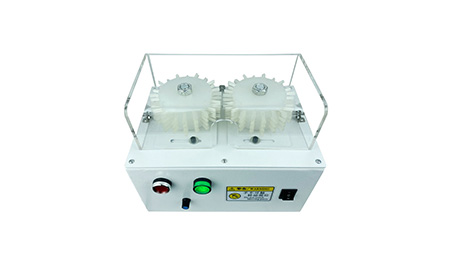

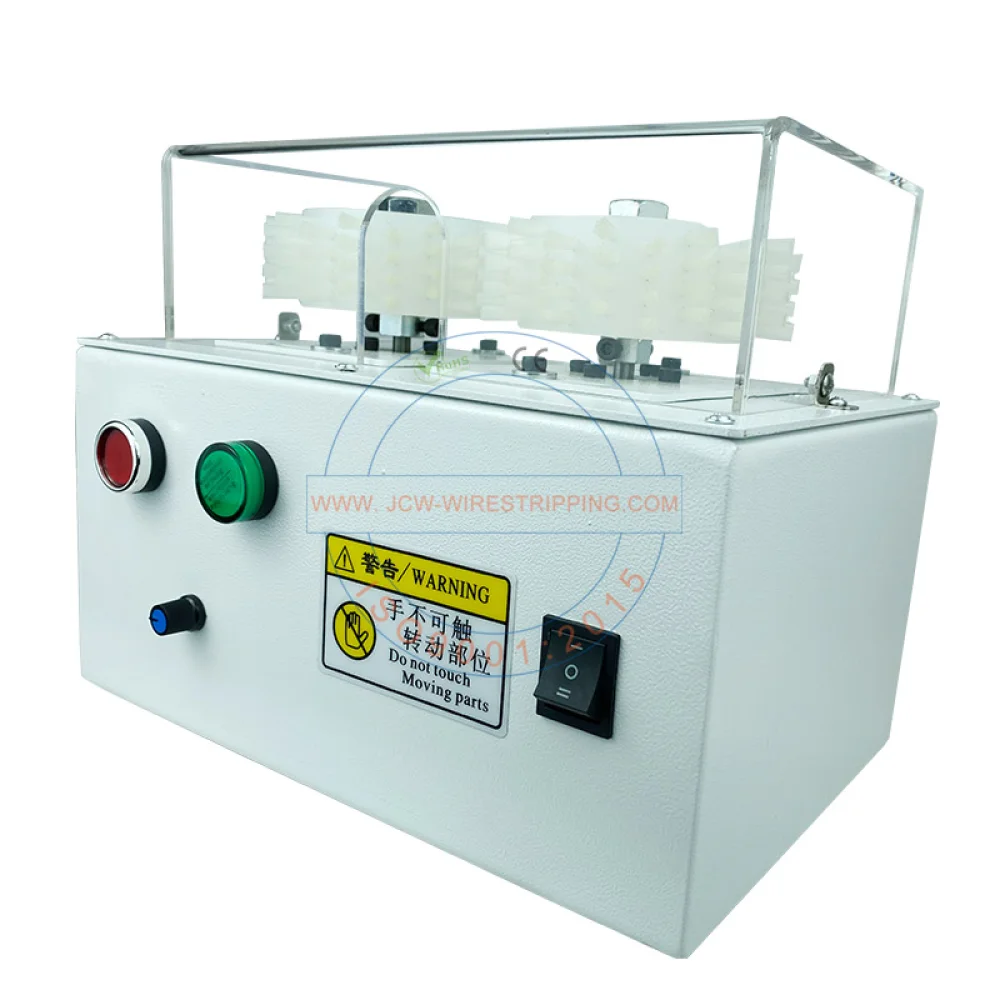

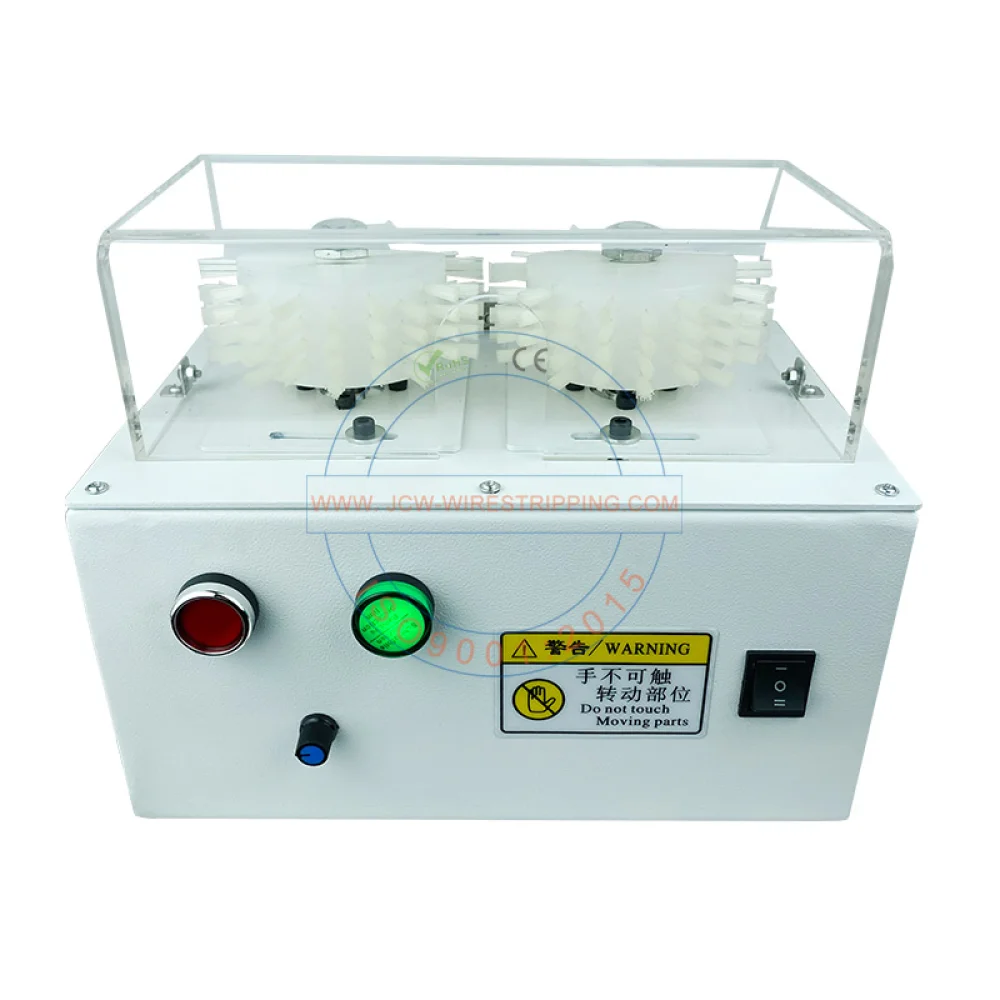

JCW-322 Cable Braid Shielding Brushing Machine

Unbraid the shield, adjustable brush spacing

Braided Shield Cable Preparation

Braided-shield cables have so many advantages, the shield cables provide a flexible method of electrically shielding a cable, and the braid also adds strength to the cable. However, the disadvantage of using a braided shield is the time and effort required to prepare the cable to attach the connector.

The JCW-322 electric braid brusher supplies an easy way to unbraid the shield to shorten the cable preparation time. This machine is designed for the de-stressing, de-interlaced of cables with braided metal shielding by brushing. The brush spacing can be adjusted easily to the wire rope diameter by means of a knurled wheel. The JCW-322 is capable to process max O.D 25mm cable.

Model	JCW-322 Cable Braided Shielding Brushing Machine
Function	Braided metal shielding, two-way rotation, adjustable brush spacing, safety cover
Brushing speed	0 - 6000 RPM
Brushing length	5 - 80 mm
Cable diameter	0.1 - 25 mm
Rated power	100 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 320 x W 220 x H 260 mm
Weight	12 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
