7.5mm O.D. Rotary Wire Stripper Coaxial Cable Stripping Machine

JCW-S600A Rotary Wire Stripper Coaxial Cable Stripping Machine

Rotary stripping, 9 stripping steps, 7.5mm cable, ultra-economic

Low price, high flexibility

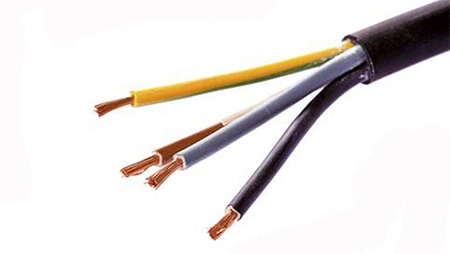

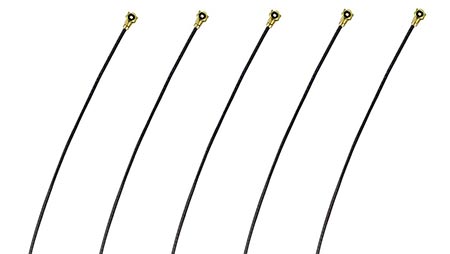

The JCW-S600A coaxial wire stripping machine is a reliable model for processing various single wire, multiconductor cable, coaxial, triaxial cable, and conductors with braided insulation, especially micro-coaxial cable with thin insulation.

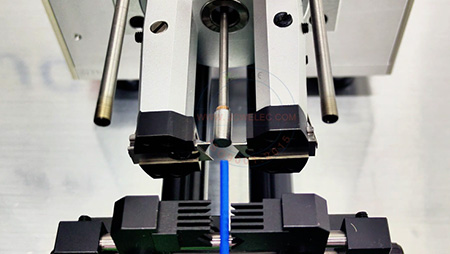

This entry-level coaxial wire stripper uses 2 pieces of blades at an ultra-economic price, it's ideal for low-volume, quick-changeover applications also high-volume production needs, offering the best possible productivity and flexibility.

Reliable multistep stripping

The JCW-S600A features multistep stripping up to a max of 9 steps, the processing steps for multi-layered cable can be programmed in any desired order. The cable clamping diameter, stripping position and pull-off length of each layer are all programmable via a user-friendly color interface, with no need for any mechanical adjustments when changing wire sizes.

Easy to operate

Each of the JCW-S600A coax & wire stripper comes with a bilingual interface, English, and Chinese. The machine language can be changed by customers' requirements to make its operation easier. The intuitive display assists the operator with setting the processing parameters. Parameters such as cut duration, pull-off speed, wire diameter, etc. are all settable respectively.

The JCW-S600A offers 4 ways to activate the processing, trigger sensor, touch screen, start button, and foot pedal.
