15KG Economic Wire Prefeeding Machine

JCW-WP01

Both loose and reel mounted cable

Vertical and horizontal switchable

120W motor with 3K gearbox

Two-way drive, clockwise & anti-clock

10 gears adjustable speed

Automatic induction with independent breaking system

Active wire feeding and prefeeding

Inquire Now

Horizontal - Unwind Wire Roll

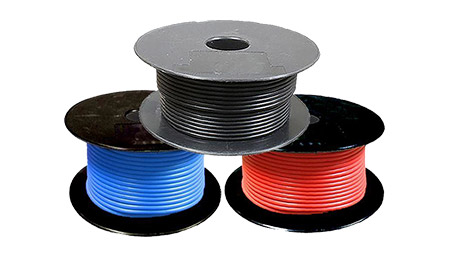

Horizontal - Despool Wire Spool

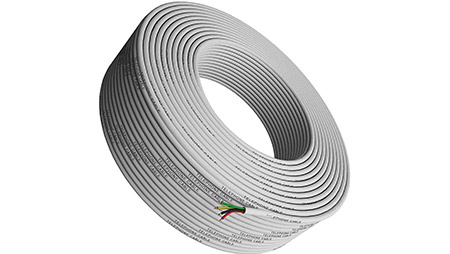

Vertical - Cable Roll

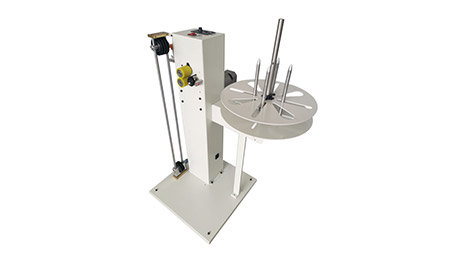

JCW-WP01 Universal Single Spool Wire Prefeeding Machine

Economical wire prefeeder, active cable dereeler

The JCW-WP01 universal wire prefeeding machine is for both loose and reel mounted wire, it's an ideal equipment for tension-free prefeeding to an automatic wire and cable processing machine.

This active cable dereeler is equipped with an adjustable dereeling motor, which is activated with a pendulum arm, the feed speed automatically adjusts to the actual requirement of any wire and cable processing machine, including the cutting machine, cutting and stripping machine, automatic terminal crimping machine, etc.

When ordering wire prefeeding machines, we recommend customers submit cable samples or images, also the cutting length and wire processing machine models, so as to offer the most proper models to meet your processing needs.

Model	JCW-WP01 Economic Single Spool Cable Prefeeding Machine
Wire diameter	0.5 - 5 mm
Wire spool diameter	400 mm
Wire spool width	250 mm
Wire spool weight	15 KG
Wire storage	1 m
Feeding speed	1 m / s
Rated power	120 W
Power supply	AC 110 - 220V, 50 / 60 Hz [ 110V on request ]
Dimensions	L 600 x W 500 x H 950 mm
Weight	45 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
