JCW-CS13
Excellent price to performance ratio
High-quality belt feeding system
High performance on processing multicore cable
High-speed 1500 pcs/h with stripping double ends
Round multi-conductor cable 2 - 10 mm OD
Automated length calibration
Fully programmable model
Cable run-out sensor
Multicore Cable & Single-Wire Cut Strip Machine

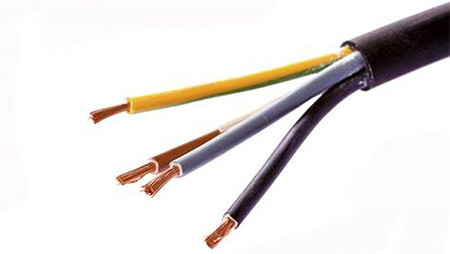

Outer Sheath Stripping 90mm & Inner Wire Stripping

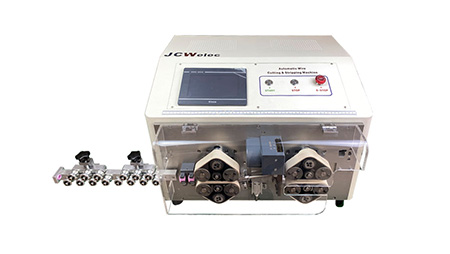

JCW-CS13 Automatic 10mm Multi-conductor Cable Cut & Strip Machine
New! Focus on multicore cable, strip both layers, hot selling
Specialist in processing multicore cable
Offering a high-quality JCW-CS13 cable cutting and stripping machine, it is capable of processing multicore cable up to 10mm O.D, cutting and stripping both outer jacket and inner cores at one time perfectly. This updated cut and strip machine offers higher performance than the last generation. The JCW-CS13 cut & strip machine adopts a titanium coated cutter blade, which has 2 sharp cutting edges. This cut & strip machine also can be used for single wire up to 16 mm².
Thanks to 14 years of real manufacture capability, continuous improvement, and professional experience, JCW keeps offering professional solutions for a variety of multicore cables.
Easy to use
Each of the JCW-CS13 cutting and stripping machine comes with an English display, the display language is customizable. A user-friendly interface and 7" color touchscreen make the operation so accurate and simple.
- The control with touch screen has an intuitive user interface for simple and safe operation.
- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.
- Data library saves 100 programs, you can name each one by a wish.
- Automatic one-touch calibration function for cutting length.
- Cable run-out sensor gives the machine a stop signal while the cable is used out.
- Quickly change guide tubes and cutter blades.
- Transparent safety cover with sensor
A variety of peripherals
- Wire unwind & pre-feed machine, load range from 15 to 1500 KG
- Robot arm controlled by CS13
- Cable stacker, 1 meter to 6 meters
| Model | JCW-CS13 Automatic Multi-core Cable Cutting and Stripping Machine |
| Function | Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Cable size | 2 - 10 mm O.D. |
| Cutting length ( L ) | 0.1 - 999999 mm |
| Cutting length accuracy | 0.002 x L |
| Single wire | YES |
| Multi-core cable | Round |
| Outer jacket stripping length | Leading ( right ) side: 150 mm |
| Trailing ( left ) side: 60 mm | |
| Inner core stripping length | 30 mm at dual-ends |
| Production rate | 1500 pcs/h by 100mm wire length [ multi-layer stripping ] |
| Data library | 100 programs |
| Feeding unit | Belt |
| Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
| Compatible peripherals | Cable dereeler, robot arm, conveyor belt |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
| Dimensions | Machine: L 650 x W 560 x H 450 mm |
| Wire straightener: 350mm | |
| Weight | 75 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
