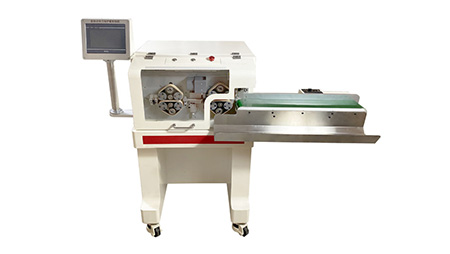

Automatic Multi-conductor Cable Processing Center

JCW-CS13C

High price-performance ratio

Compactly designed cable processing center

Cut & strip machine, robot arm, conveyor belt, collect stacker all in 1

Saved labor work, increased work efficiency

Moveable and applicable for various work environments

Inquire Now

Cable Cutting Stripping & Stacking

Model	JCW-CS13C Automatic Cable Cut & Strip Machine
Function	Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Outer jacket stripping, Inner insulation stripping, Wire lack sensor, Length correction, Automatic cable collector
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable size	3 - 10 mm O.D.
Cutting length ( L )	150 - 999999 mm
Cutting length accuracy	0.002 x L
Single wire	YES
Multi-core cable	Round
Outer jacket stripping length	Leading ( right ) side: 250 mm
Outer jacket stripping length	Trailing ( left ) side: 70 mm
Inner core stripping length	15 mm at dual-ends
Production rate	1100 pcs/h by 500mm wire length [ multi-layer stripping ]
Data library	100 programs
Feeding unit	Belt
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable prefeeder
Rated power	1200 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.5 - 0.8 MPa ( clean and dry air )
Dimensions	Whole machine: L 1500 x W 800 x H 1300 mm
Dimensions	Conveyor belt: 700mm
Weight	135 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
