JCW-Q50
Smart, universal crimp wire pull tester
Stable pulling and a precise measurement range up to 490N
Both destructive and non-destructive test
Testing values are all programmable and pre-settable
4.3" color touch screen, user-friendly interface
Switch test unit between KG.F, Newton and pound by one touch
RS232 communication with MES system on request
Data printing on request
Customized terminal holder & cable holder on request

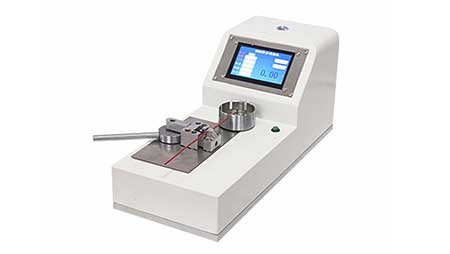

Standard Version
JCW-Q50 Benchtop Motorized 500N Wire Crimp Pull Tester
Motorized crimp pull force tester, reliable quality tool
Reliable and Precise
The JCW-Q50 wire crimp pull tester is a stepper motorized reliable quality tool for the wire harness industry. This pull force tester adopts a stepper motor, high-quality sensor, 4.3" color touch screen to ensure precise reading and clear presenting of the pull force.
The versatile terminal holder accepts various wires and terminals of different sizes, the pulling speed is adjustable due to the speed-controlled motor, the robust wire clamp ensures smooth pulling and undisturbed flow of the measure.
We also supply special terminal holders, so that ring terminals, ferrules, flag terminals, and even ultra-fine wires can be tested on this pull tester.
Easy to use
Whether novice or professional, you can quickly use the JCW-Q50 wire crimp pull tester.
- Simple color touch screen and user-friendly display for easy programming & reading.
- Settable pulling speed, range from 10 to 400 mm per minute.
- Data library saves 16 programs.
- Changeable language.
| Model | JCW-Q50 Benchtop Motorized 500N Wire Crimp Pull Tester |
| Function | Pulling speed, destructive test, non-destructive test, data printer, RS232, mes connection |
| Measuring range | Max 490 N ( 49 KG.F ) |
| Accuracy | 0.5 % |
| Pulling speed | 10 - 400 mm/min |
| Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Dimensions | L 430 x W 180 x H 210 mm |
| Weight | 10 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
