JCW-CS07B
Exclusively designed for the lead-acid battery industry
Ultra-short heavy-duty wire cutting and stripping
Servo motor, high-quality driver & belt, 7 axis motion control card
The rollers raise and fall simultaneously
Data library stores 100 programs
Automatic length modification
Custom Battery Cable Ultra-short Cutting & Stripping
JCW-CS07B Ultra-short 50mm² Heavy Cable Cutting & Stripping Machine

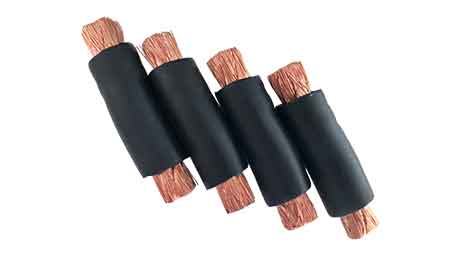

Unique design, battery jumper cable, ultra-short processing
Specialist in processing battery cable
The JCW-CS07B is designed for cutting and stripping heavy-duty cable up to 50mm², it perfectly suits ultra-short cutting and stripping. Servo motorized belt feeding system guarantees the feeding precision, keeps stable clamping during the whole processing, and avoids causing any damage to the outer jacket.
The JCW-CS07B cable cutting and stripping machine uses 7 axis motion control card to control the rollers precisely, the roller gap and pressure are all adjustable via a 7" color touch screen. Upper and lower rollers move simultaneously, no matter cable is big or small, the center points of the cable are always parallel with the guide tube and cutter blade.
Easy to use
The standard model of this cutting and the stripping machine comes with an English display, the display language is customizable. A user-friendly interface and color touchscreen make the operation so accurate and simple.
- The control with touch screen has an intuitive user interface for simple and safe operation.
- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.
- Data library saves 100 programs, you can name each one by a wish.
- This cutting and stripping machine features an automatic one-touch calibration function for cutting length.
- Quickly change guide tubes and cutter blades.
- Transparent safety cover with sensor
Peripheral
- Wire unwind & pre-feed machine, max 1500 KG
| Model | JCW-CS07B Ultra-short 50mm² Heavy Cable Cutting & Stripping Machine |
| Function | Servo-driven, belt transfer, wire measuring, cut into ultra-short length, single-end strip, dual-end strip, automatic length correction. |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Conductor cross-sections | 10-50mm² |
| Cutting length ( L ) | 50 - 400 mm |
| Cutting length accuracy | 0.002 x L |
| Length with Jacket | Min 25mm(L=50mm, strip 12.5mm at both sides) |
| Stripping length | Leading ( right ) side: 50 mm |
| Trailing ( left ) side: 25 mm | |
| Strip Length Increment | 0.01 mm |
| Production rate | 500 pcs/h (L=50mm, strip12.5mm at both sides) |
| Data library | 100 programs |
| Feeding unit | Servo motorized belt system |
| Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
| Compatible peripherals | Cable prefeeder, cable stacker |
| Power supply | AC 110 / 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
| Dimensions | Machine: L 700 x W 620 x H 500 mm |
| Wire straightener: 350mm | |
| Weight | 80 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
