JCW-CS22
Versatile machine, ideal solution for cutting stripping special cables
Effective for processing long cables, Ultra high-speed
Servo motorized wire stripping machine
Single pulling length 950mm, multi-pulling is available

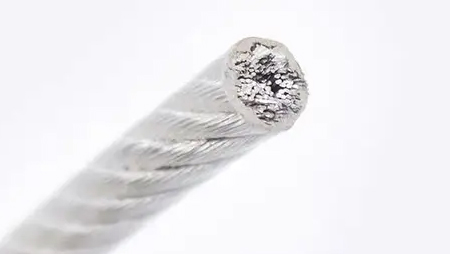

PVC coated wire rope cutting stripping machine
Capable of cutting and stripping wire rope
| Model | JCW-CS22 Ultra High-speed Cable Cutting Stripping Machine |
| Function | Single wire, Multicore cable, ribbon cable, power cord, shield cable, wire rope. Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed. |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Cable diameter | Max 12 mm |
| Cutting length ( L ) | 45 - 99999.9 mm |
| Cutting length accuracy | 0.002 x L |
| Stripping length | 200 mm |
| Pull length | Single pulling 950mm, multi-pulling is available |
| Pull accuracy | ± 1mm |
| Pull times | 25 times per minute |
| OEM | Yes |
| Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
| Compatible peripherals | Wire pre feeder, conveyor belt |
| Rated power | 1000 W |
| Power supply | AC 220 V ± 10%, 50 / 60 Hz |
| Dimensions | L 1750 x W 750 x H 1500 mm |
| Weight | 280 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
