JCW-CS19
Servo motorized cutter head, neat cutting
Cut and strip max 25 mm O.D. and 120 mm² battery cables
High-quality belt feed system, zero damage to the cable
Powerful clamp force, precise feeding length
7" color touch screen, multi-language interface
Transparent and robust safety cover, safety sensor
Automatic cutting length calibration ensures precision
Cable run-out sensor gives machine a stop signal

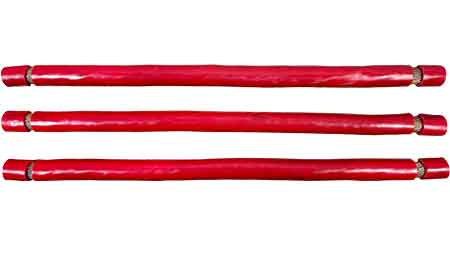

Max 120sq mm Cable Cutting Stripping Machine

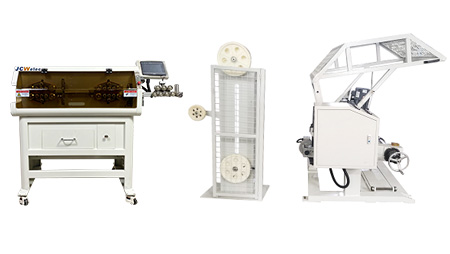

Cable Cut Strip Machine & Cable Prefeed Machine
JCW-CS19 Free Standing Belt-driven 120mm² Cable Cutting and Stripping Machine
Expand the capabilities, maximize the productivity
Powerful and precise cable processing equipment
The JCW-CS19 is a robust and precise free-standing machine for cutting into length and stripping 10 to 120mm² big battery cables. The servo motorized cutter head ensures powerful and precise cutting, high-quality wear-resistant feeding belts, and 32 rollers offer powerful clamping force, the feeding length is surprisingly precise. The pull-off length has achieved 800mm on the leading side.
A transparent safety cover and a safety sensor bring all-around protection to the operator, the sensor will give the machine an emergency stop signal once the door is open.
Simple operation, stable performance
The JCW-CS19 cable stripping machine offers simple operation, it's so friendly even to the novice. The control with touch screen has an intuitive user interface, thanks to the microprocessor control, all of the parameters such as wire cutting length, stripping length, cutting speed, feeding speed, wire diameter, etc. can be accurately entered and stored for future recall at any time.
Build your automated product line
- Cable pre-feeding machine, load range from 15 to 1500 KG
- Robot arm controlled by CS19, simple setting
- Conveyor belt, 1 meter to 6 meters
Please contact us if you have some special cables and processing needs. We will recommend proper machines and solutions.
| Model | JCW-CS19 Belt-driven 120mm² Cable Cutting and Stripping Machine |
| Function | Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Conductor cross-sections | 10 - 120 mm² |
| Cable diameter | Max 25 mm |
| Cutting length ( L ) | 1 - 99999.9 mm |
| Cutting length accuracy | 0.002 x L |
| Stripping length | Front ( right ) side: 1 - 800 mm |
| Rear ( left ) side: 1 - 260 mm | |
| Feeding system | 32 rollers, belt-driven |
| Production rate | 1800 pcs/h [ depends on cutting length ] |
| Data library | 100 programs |
| OEM | Yes |
| Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
| Compatible peripherals | Cable splitter, wire pre feeder, robot arm, conveyor belt |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Dimensions | L 1360 x W 650 x H 1450 mm |
| Weight | 155 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
