Automatic processing multicore cable
Stripping, twisting, fluxing, tinning
Fully programmable, super user-friendly
Increased productivity, specialize in multicore cable
Perfect tinning solution for multicore cable
JCW-CST23
Automatic processing multicore cable
Stripping, twisting, fluxing, tinning
Fully programmable, super user-friendly
Increased productivity, specialize in multicore cable
Perfect tinning solution for multicore cable

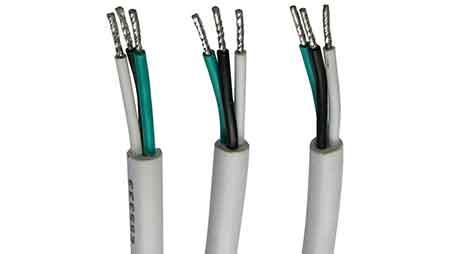

Strip and Tin Multicore Wire

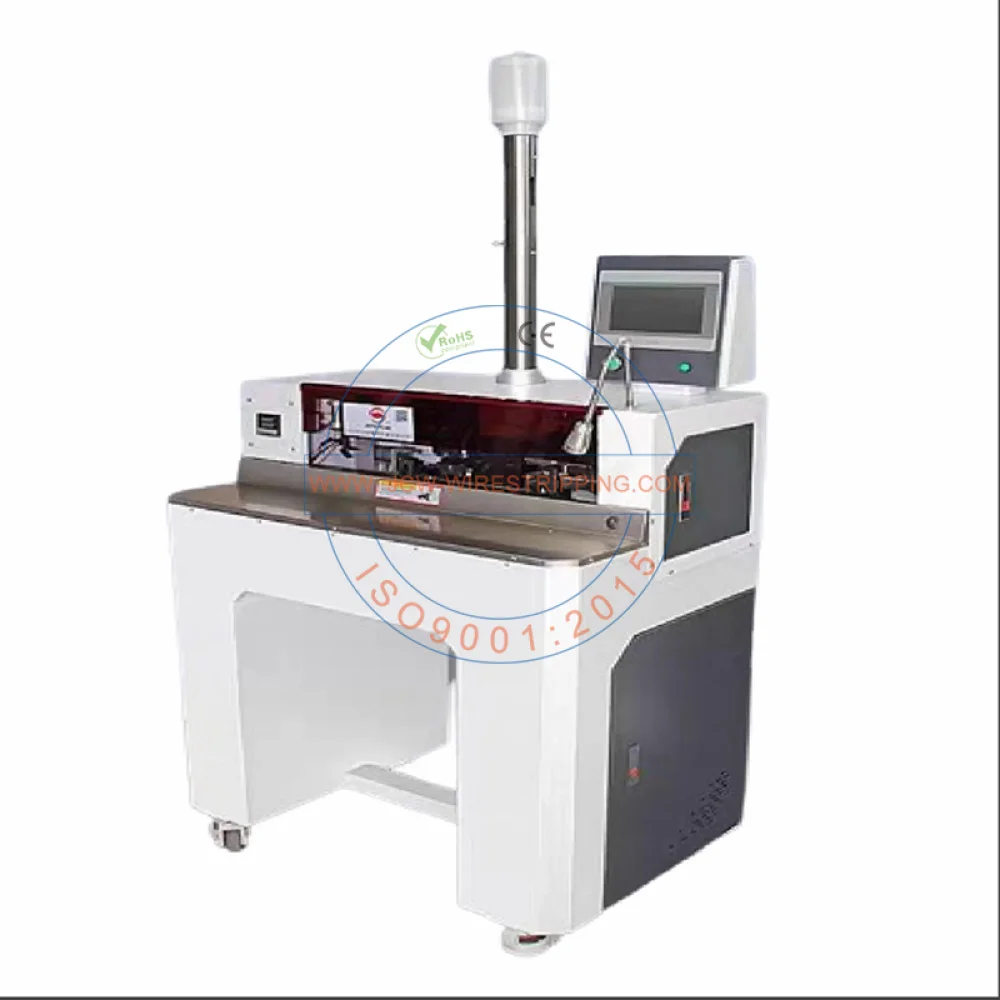

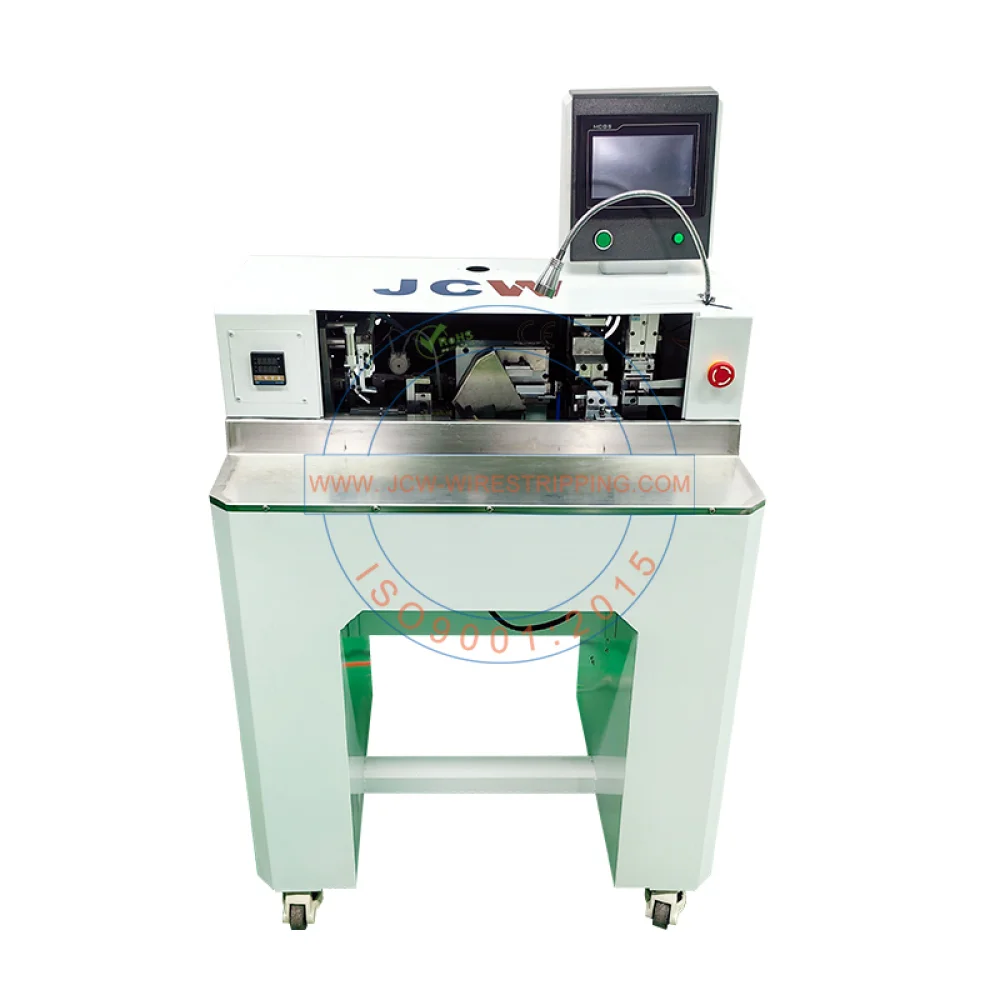

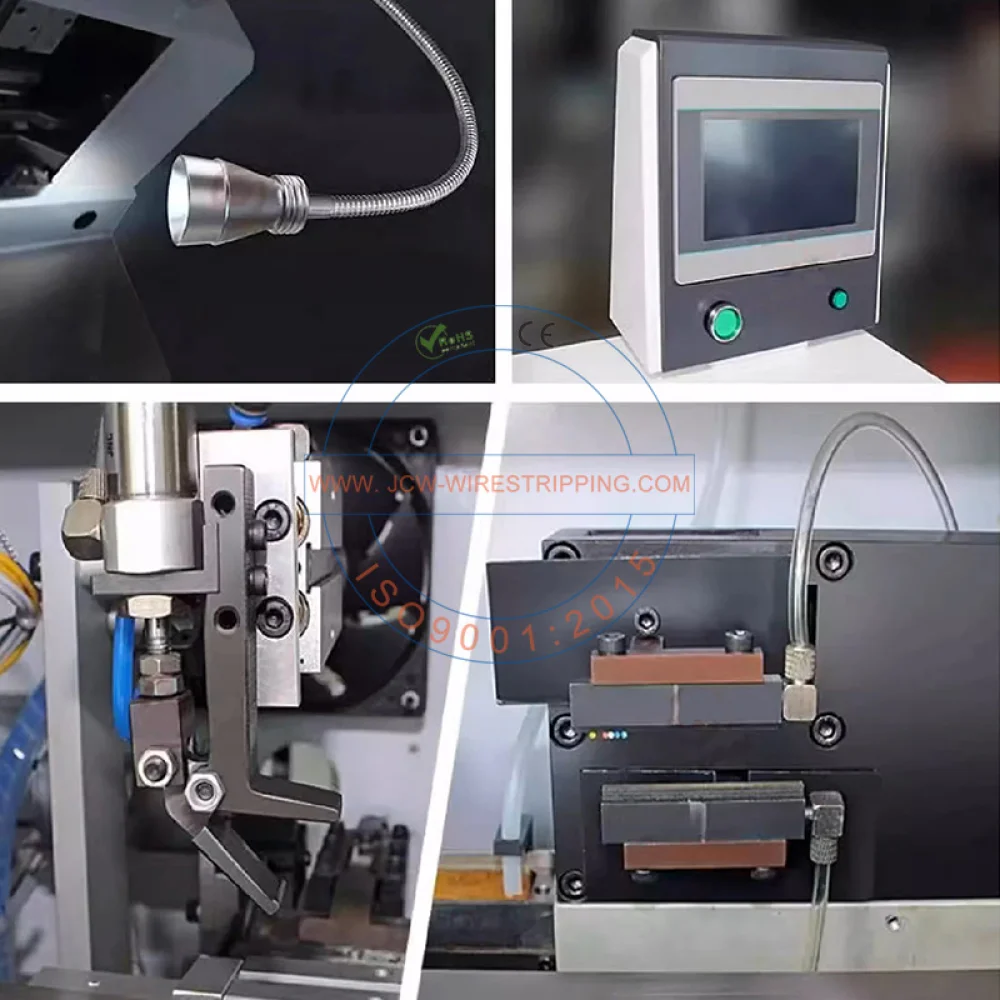

The JCW-CST23 is a semi-automatic stripping and tinning machine for multi-core sheathed cables. The outer sheath of the cable must be stripped in advance. The machine will automatically cut the front end of the core wires, strip the wires, twist the wires and tin them. This machine is an efficient multi-core wire processing equipment. The front of the machine is completely open, which is very convenient for daily debugging and maintenance.
Model | JCW-CST23 Multicore Cable Wire End Stripping to Tinning Machine |
Function | Multicore cable, align wire, stripping wire end, twisting conductor, fluxing & tin soldering |
Wire range | 0.8 - 3.0 mm |
Raw material | PVC, Teflon, Low halogen, etc. |
Jacket stripping length | Min 20 mm |
Strip length | Max 16 mm |
Twist length | Max 15 mm |
Tinning length | 0.5 - 14 mm |
Production rate | 500 pcs/h |
Recipe saving | Yes |
Display | 7" touch screen, English / Chinese [ other languages on request ] |
Power supply | AC 110 - 220V ± 10%, 50 / 60 Hz |
Rated power | 700 W |
Air supply | 0.5 - 0.7 MPa [ Clean and dry air ] |
Weight | 105 KG |
Dimensions | L 850 x W 650 x H 1250mm |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
