Multicore Cable Middle Cutting and Center Stripping Machine

JCW-CS05W

Special model for multi-mid-stripping

4th generation powerful and precise cut & strip machine

AV battery cable, multiconductor cable

PVC, Teflon, Silicone, Low halogen, Fiberglass cables

Cable range up to 12mm O.D or 25sqmm

7" color touch screen, user-friendly interface

8 rollers driven by high torque hybrid step motors

Fully programmable saves 100 programs

Inquire Now

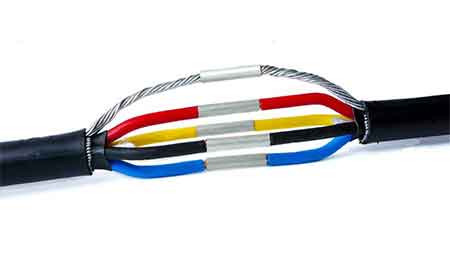

Multicore Cable Mid-cut Machine | Cable Joint

Model	JCW-CS05W Multicore Cable Sheath Cutting and Middle Stripping Machine
Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.1 - 25 mm², 12 mm diameter
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 250 mm [ partial stripping ]
Stripping length	Rear ( left ) side: 120 mm [ partial stripping ]
Middle strip	13 sections
Production rate	1000 pcs/h by 100mm wire length
Data library	100 programs
Flat cable	Slit and strip, by changing straightener, guide and blade
Multicore cable	Outer jacket stripping
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	8 rollers
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 650 x W 580 x H 450 mm
Dimensions	Wire straightener: 350mm
Weight	70 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
