Automatic Middle Splitting Cable Window Stripping Machine
Automatic Middle Splitting Cable Window Stripping Machine
Automatic Middle Splitting Cable Window Stripping Machine

Automatic Middle Splitting Cable Window Stripping Machine

JCW-CS06W

Apply to the lighting industry, charger manufacturer, etc

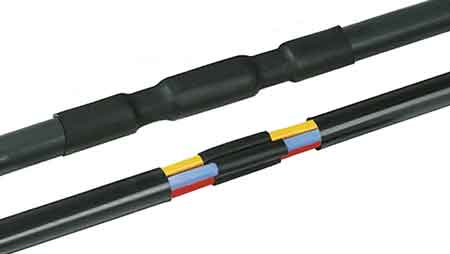

Unlimited middle stripping on outer jacket of multicore cable

Window stripping numbers, stripping lengths are all programmable

Inquire Now
Add To Cart
Wire & Cable Mid-cut Machine

Wire & Cable Mid-cut Machine

Model

JCW-CS06W Automatic Middle Splitting Cable Window Stripping Machine

Function

Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Split length, Cut depth, Wire run-out sensor, Length correction

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections0.1 - 16 mm², 10 mm diameter
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy
0.002 x L
Stripping lengthFront ( right ) side: 150 mm [ partial stripping ]
Rear ( left ) side: 70 mm [ partial stripping ]
Production rate600 -1000 pcs/h, depends on the setting.
Data library100 programs
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
Cable feeding
6 rollers
Compatible peripheralsCable prefeeding unit, robot arm, cable stacker
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsMachine: L 560 x W 470 x H 370 mm
Cable slitter & straightener: 470mm
Weight55 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
