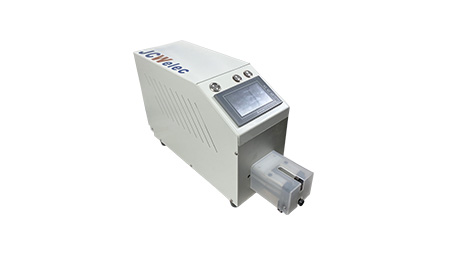

16mm² Automated Wire End Cutting and Stripping Machine

JCW-S05F

Electric wire stripping machine, Activated by trigger sensor

Fully programmable via HMI, precise location and cutting depth control

Fully strip, partial strip, double- / multi-layer strip

Set various strip lengths and wire diameters, sequential work

High-quality V-blade, compatible with different wire diameters

Clamp jaws and cutter blades move parallel

Wires at different diameters always aim at the same center points

Inquire Now

Fully Programmable Smart Wire End Cutting & Stripping Machine

JCW-S05F Automatic Wire Stripping Machine

Fully programmable

The JCW-S05F offers the user-friendly operation, all the parameters are programmable via a 4.3" color touchscreen. The data library saves programs automatically for future use. Mechanic adjustment is not needed. The machine starts working once the wire end touches the trigger sensor, V-blade cuts the insulation precisely.

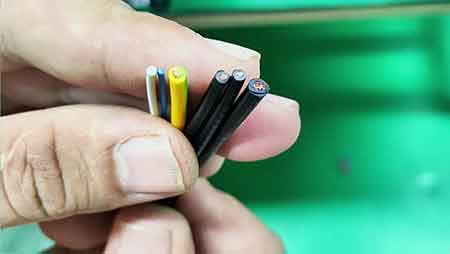

Via program setting, the S05F wire stripping machine can cut the wires into the same length.

Model	JCW-S05F Automatic Wire Stripping Machine
Function	Full stripping, partial stripping, cut diameter, double- / multi-layer strip, strip position, pull-off length
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.04 - 16 mm² [ AWG 30 - 4 ]
Stripping length	1 - 40 mm
Strip increment	0.05 mm
Production rate	1800 - 2000 pcs/h
OEM	Yes
Power supply	AC 110 - 220V, 50 / 60 Hz
Dimensions	L 500 x W 162 x H 300 mm
Weight	15 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
