Automatic Single Wire Sealing Crimping to Tinning Machine

JCW-CST16

MITSUBISHI servo motorized, fully programmable

Wire cutting, stripping, sealing, crimping, tinning all in one

High-quality component, smooth connection

2000 pcs per hour, high output

Wire range AWG28 - 16, O.D. 0.8 - 3.2 mm

Most compact design, space-saving

Optional CFM, CCD inspection systems

Inquire Now

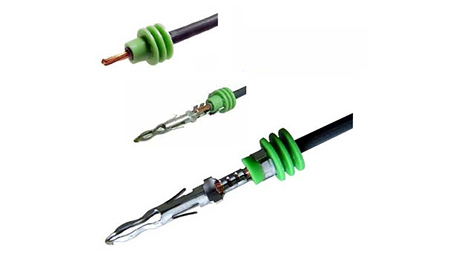

High-end Seal Crimping Wire Dipping Machine

Model	JCW-CST16 Automatic Single Wire Sealing Crimping to Tinning Machine
Function	Wire measuring and cut into length, Side A: wire stripping, twisting, sealing, crimping; Side B: wire stripping, conductor twisting, wire thinning. Sealing alarm
Raw material	AV, AVS, AVSS, CAVUS, KVKIV, UL
Wire Size	AWG28 - 16
Wire O.D.	φ0.8 - 3.2 mm
Cut length ( L )	50 - 99999 mm
Cut length increment	1 mm
Cut length accuracy	0.1 mm ± 0.005 x L
Strip length	0 - 15 mm
Twist length	2 - 10 mm
Tinning length	2 - 10 mm
Crimping press	Servo motorized
Crimping force	2 tons
Display	Color touch screen, English / Chinese [ other languages on request ]
Data library	100 programs
Product rate	2000 pcs/h by 100 mm wire length [ Sealing & Crimping & Tinning ]
Optional peripherals	Upper-computer software, CFM, CCD, Wire prefeeder, Wire stacker
Air supply	0.5 MPa [ clean and dry air ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 1200 x W 1100 x H 2300 mm
Weight	450 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
