Automatic Dual-end Wire Crimping to Single-end Sealing Machine

JCW-CST17C

Inquire Now

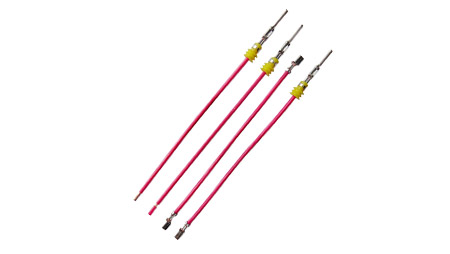

Dual-end crimping, single-end sealing

Model	JCW-CST17C Automatic Dual-end Wire Crimping to Single-end Sealing Machine
Function	Wire measuring and cutting into length Side A: wire stripping, sealing, crimping Side B: wire stripping, crimping
Raw material	AV, AVS, AVSS, CAVUS, KVKIV, UL
Wire Size	AWG28 - 18
Insulation length	17mm with dual-end stripping [ can be customized to 12mm ]
Cut length accuracy	±0.1（0.1＋0.003*L）mm, L=cutting length
Strip length	Front-end: 18 mm Rear-end: 20 mm
Crimping press	Servo motorized
Crimping force	2 tons
Crimping applicator	Side-feed, End-feed
Display	Color touch screen, English / Chinese [ other languages on request ]
Data library	100 programs
Product rate	1500-1800 pcs/h by 100 mm wire length [ Sealing & Crimping ]
Optional peripherals	CFM, CCD, Wire prefeeder
Air supply	0.6 MPa [ clean and dry air ]
Rated power	3000 W
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 1700 x W 920 x H 1580 mm
Weight	550 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
