JCW-CST17
MITSUBISHI servo motorized, fully programmable
Wire cutting, stripping, sealing, and crimping all in one
High-quality component, high-performance, and reliability
2000 - 2500 pcs per hour, high output
Wire conductor cross-section 0.2 to 2.5 mm²
Automatic detection and sorting of defective products
Optional CFM, CCD inspection systems

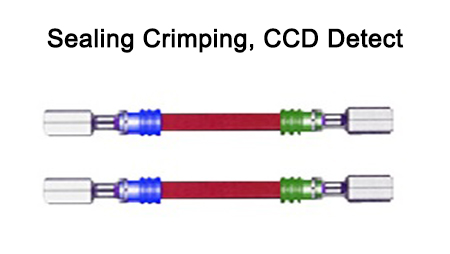

Vision Detect Wire Seal Crimping Machine
The JCW-CST17 is a high-end fully automatic waterproof seal processing machine. All processing units can be shut down independently. This machine can realize wire cutting, stripping, terminal crimping, waterproof plug insertion, and can also start or shut down any function according to actual needs. Used together with a host computer, this machine can realize flexible transmission and storage of processing data.
Adopt high-precision waterproof plug device and linear vibration system imported from Japan to ensure perfect delivery of waterproof plug
| Model | JCW-CST17 Automatic Single Wire Sealing to Crimping Machine |
| Function | Wire measuring and cut into length, Wire stripping, sealing, crimping; Sealing alarm. Cut depth, Strip length, Crimp depth, Automatic detect and sort out defective product |
| Raw material | AV, AVS, AVSS, CAVUS, KVKIV, UL |
| Conductor cross-section | 0.2 - 2.5 mm² |
| Cut length ( L ) | 35 - 99999 mm |
| Cut length accuracy | 0.1 mm ± 0.005 x L |
| Strip length | 0 - 15 mm |
| Crimping press | Servo motorized |
| Crimping force | 2.5 tons |
| Display | Color touch screen, English / Chinese [ other languages on request ] |
| Data library | 100 programs |
| Product rate | 2000 - 2500 pcs/h by 100 mm wire length [ Sealing & Crimping ] |
| Optional peripherals | Upper-computer software, CFM, CCD, Wire prefeeder, Wire stacker |
| Air supply | 0.5 MPa [ clean and dry air ], 150 ANR / min |
| Power supply | AC 110 - 220V ± 10%, 50 / 60 Hz |
| Dimensions | L 1200 x W 1100 x H 2300 mm |
| Weight | 525 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
