JCW-CST07B
Single wire, terminal crimping to wire tinning
Wire Range: 0.03 - 2 mm² [ AWG 32 - 14 ]
Cutting length: 18 - 99999 mm [ Other sizes on request ]
Front stripping length: 0.1 - 8 mm
Rear stripping length: 0.1 - 18 mm
Tinning length: 1 - 10 mm
Crimping force: 2 tons
3200 pcs/h by 50mm wire length
High Price-to-Performance Ratio
Ultra-short Wire Processing

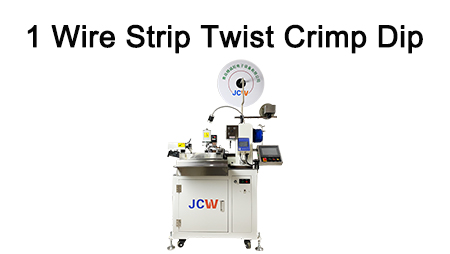

JCW-CST07B Automatic Single-end Crimping & Single-end Tinning Machine
Reliable, robust, excellent wire twisting, lead-free tinning
Feature of the machine
The JCW-CST07B is a highly reliable automatic crimping machine with 4 processing stations, serves various applications: wire cutting and stripping, terminal crimping, wire twisting, fluxing and tinning. The JCW-CST07B is designed for meeting high-quality requirements on terminal crimping and wire tinning. Crimp applicator changeover is simple and fast, both vertical and horizontal types are suitable. The specially designed twisting station offers super neat and beautiful twisting on conductor end strands, cooperate with the 90-degree dip tinning action, the JCW-CST07B brings you impeccable products.
High-quality processing and simple operation
The JCW-CST07B integrates high-quality components, Nidec servo motors, Panasonic PLC, Omron temperature control, highly rigid transmission structure, high-speed control system. Production parameters are entered with the 7" WEINVIEW touch screen monitor via the intuitive user interface to reduce training time and minimize entry errors, everyone can use it easily and quickly. The JCW-CST07B offers vivid detection functions, wire lack detection, wire knot detection, stripping detection, crimping detection, air pressure detection, etc.
Various peripherals and options
- Crimping force monitoring ( CFM )
- Wire prefeeding machine
- Conveyor belt ranging from 1 meter to 6 meters
- Various languages
| Model | JCW-CST07B Automatic Servo Motorized Wire Crimping Machine |
| Function | Wire pre-feeder, Single / Dual-end strip, Single-end crimp, Cut depth, Stripping length, Twisting length, Tinning depth, Crimp position |
| Wire cross-section | 0.03 - 2 mm² ( AWG 32 - 14 ) |
| Cutting length | 18 - 99999 mm |
| Stripping length | Front side: 0.1 - 8 mm |
| Rear side: 0.1 - 18 mm | |
| Twisting length | 2 - 10 mm |
| Tinning length | 1 - 10 mm |
| Crimping force | 20 KN ( 2.0 tons ) |
| Production rate | 3200 pcs/h by 50mm cutting length |
| Rated power | 3000 W |
| Power supply | AC 110 - 220V ± 10%, 50 / 60Hz |
| Air supply | 0.5 - 0.7 MPa [ Clean and dry air ] |
| Weight | 400 KG |
| Dimensions | L 1450 x W 900 x H 1800mm |
| Accessory device | Synchronous wire pre-feeder, paper winder |
| Detection | Wire lack, Wire jam, Stripping, Crimping, Air pressure |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
