Fully-auto Single Wire Crimping to Tinning Machine

JCW-CST07A

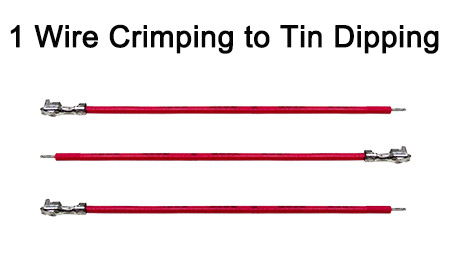

Single wire, terminal crimping to wire tinning

Wire Range: 0.03 - 0.75 mm² [ AWG 32 - 18 ]

Cutting length: 30 - 99999 mm [ Other sizes on request ]

Front stripping length: 0.1 - 10 mm

Rear stripping length: 0.1 - 15 mm

Tinning length: 2 - 15 mm

Crimping force: 2 tons

3600 pcs/h by 100mm wire length

Inquire Now

High-level Lead Wire Crimping Twisting to Tinning

Model	JCW-CST07A Fully-auto Wire Crimping and Tinning Machine
Function	Wire pre-feeder, Single- / Dual-end strip, Single-end crimp, Cut depth, Stripping length, Twisting length, Tinning depth, Crimp position
Wire cross-section	0.03 - 0.75 mm² ( AWG 32 - 18 )
Cutting length	30 - 99999 mm
Stripping length	Front side: 0.5 - 10 mm
	Rear side: 0.5 - 15 mm
Twisting length	2 - 15 mm
Tinning length	2 - 15 mm
Crimping force	20 KN ( 2.0 tons )
Production rate	3600 pcs/h by 100mm cutting length, crimping and tinning
Power supply	AC 110 - 220V ± 10%, 50/60Hz
Air supply	0.5 - 0.7 MPa [ Clean and dry air ]
Weight	450 KG
Dimensions	L 1100 x W 920 x H 1600mm
Optional peripheral	CFM, Wire prefeeder
Detection	Wire lack, Wire jam, Stripping, Crimping, Air pressure
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
