High-speed Fully Automatic Fine Wire Crimping Machine

JCW-CST20

Cross section: 0.05 - 2 mm² ( AWG 30 -14 )

Cut length: 26 - 99999 mm

Pull-off length: 0.5 - 35 mm

Crimp force: 20 KN [ 40 KN on request ]

4400 - 4800 pcs/h by 30 - 200mm wire length

Display: English / Chinese [ Other languages on request ]

Inquire Now

Automatic Production Line

The fully servo-controlled double-head terminal crimping machine CST20 has a unique structural design that provides user-friendly operation and makes it very convenient to replace the terminal reel. The sophisticated design ensures that this machine can handle fine wires, and multiple detection functions can monitor the machine's operating status throughout the entire process.

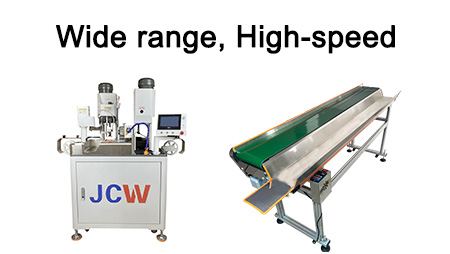

With the wire prefeed machine, conveyor belt, and crimp force monitor, you can get a complete automatic production line.

Model	JCW-CST20 High-speed Fully Automatic Terminal Crimping Machine
Function	Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, Optical positioning, OTP applicator, Mini-style applicator, etc
Wire cross-section	0.05 - 2 mm² ( AWG 30 -14 )
Strip length	0.5 - 35 mm [ Over 12mm, only partial-strip ]
Cut length ( L )	26 - 99999 mm
Cut length tolerance	± 0.002 x L
Crimp force	20 KN (2.0 tons) [ 40 KN on request ]
Stroke	30 MM [ 40 MM on request ]
Detector	Wire lack, Terminal lack, Terminal crimping, Wire knot, Air pressure
Production rate	4000 - 4800 pcs/h by 30 - 200 mm wire length
Data library	100 programs
Display	7" touch screen, English / Chinese [other languages on request]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Air supply	0.5 - 0.6 MPa [ Clean and dry air ]
Weight	360KG
Dimensions	L 1380 x W 750 x H 1580mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
