JCW-CS06Z
2 core twin flat cable, zipcord
Precise separation causes no damage to cable
PVC, Teflon, Silicone, Low halogen, Fiber glass cables
4.3" color touch screen
User-friendly English interface
6 rollers driven by high torque hybrid step motors
Fully programmable, saves 100 programs

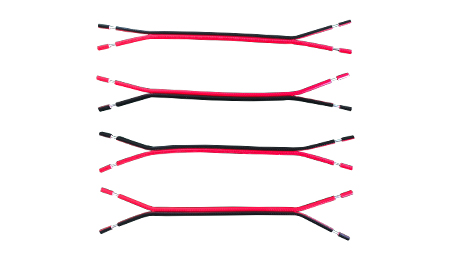

UL2468 2-Core Red Black Cable Slit-Cut-Strip
JCW-CS06Z LED 2 Cores Twin Flat Cable Split Cut and Strip Machine
Specially made cable split mechanism, precise separation, high speed
Professional slit cut & strip machine
To replace traditional manual pulling apart and meet high-level industrial requirements, we developed the JCW-CS06Z cable slitting, cutting, and stripping machine. The JCW-CS06Z is specifically for processing 2 cores twin cable and zip cord. It allows cable splitting, cutting, and dual-end stripping in one work cycle. The splitting length is programmable, and the splitting unit is specially made for specific cable gauge, it guarantees the splitting precision with no damage to the insulation and conductor.
LED strips extension cable is ideal for all single color LED strip light, low-voltage single-color led strip, light bulb, lamp. It is widely used for various DC electrical hookups, low voltage cables, 12V DC, 24V DC, low-loss in-home or car stereo installs. Great for in-home applications as well as automotive, schools, churches, auditoriums or business settings.
Easy to use
The standard model comes with an English display, the machine language is customizable. A user-friendly interface and color touchscreen make the operation so accurate and simple.
- The control with touch screen has an intuitive user interface for simple and safe operation.
- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.
- Data library saves 100 programs, you can name each one by a wish.
- This cutting and stripping machine features an automatic one-touch calibration function for cutting length.
- Wire run-out sensor gives the machine a stop signal while the wire is used out.
- Quickly change guide tubes and cutter blades.
Various options for specific applications
- Wire unwind & pre-feed machine, load range from 15 to 200 KG
- Robot arm controlled by CS06
- Cable stacker, 1 meter to 6 meters
- V-blade, Multi-V blade, Radius blade, Flat blade
| Model | JCW-CS06Z 2 Core Twin Flat Cable Slitting Cutting and Stripping Machine |
| Function | Single wire, Zipcord, Wire measuring and slitting, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire run-out sensor, Length correction |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Cutting length ( L ) | 0.1 - 999999 mm |
| Cutting length accuracy | 0.002 x L |
| Stripping length | Front ( right ) side: 150 mm [ partial stripping ] |
| Rear ( left ) side: 70 mm [ partial stripping ] | |
| Middle strip | 13 sections |
| Production rate | 2500 pcs/h by 100mm wire length |
| Data library | 100 programs |
| Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
| Cable feeding | 6 rollers |
| Compatible peripherals | Cable prefeeding unit, robot arm, cable stacker |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa [ clean and dry air ] |
| Dimensions | Machine: L 560 x W 470 x H 370 mm |
| Wire straightener: 250mm | |
| Weight | 45 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
