JCW-CS03B
High-precision for long wire cutting
Upper & lower rollers open & close simultaneously
Ensure wire always aims at the blades center
Perfectly protect wire, leaving no mark on insulation
Optional fully-covered safety guard
User-friendly, high price-to-performance ratio

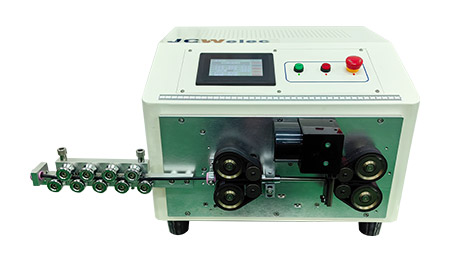

Belt-feed Wire Cut-Strip Machine
The JCW-CS03B uses high-quality belts to feed the wire. Both sets of feeding wheels open and close simultaneously to ensure that the center of the belt gap is parallel to the center of the blade. The setting of the wheel spacing is completed quickly and accurately through the touch screen. The high-quality belt solves the problem of the rollers leaving marks on the wire insulation, and also greatly improves the feeding accuracy of long wires..
| Model | JCW-CS03B Belt-feed Precise Single Wire Cut Strip Machine |
| Function | Single wire,Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Air blow, Length correction |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Conductor cross-sections | 0.03 - 6 mm² [ 10mm² on request ] |
| Cutting length ( L ) | 0.1 - 999999 mm |
| Cutting length accuracy | 0.002 x L |
| Stripping length | Front ( right ) side: 50 mm [ Full stripping ] |
| Rear ( left ) side: 30 mm [ Full stripping ] | |
| Middle strip | 13 sections |
| Production rate | 4700 - 9500 pcs/h by 50mm wire length [ single/double wire guider ] |
| Data library | 100 programs |
| Zip-cord | Optional |
| Roller lift function | Optional |
| Fully covered safety guard | Optional |
| Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
| Compatible peripherals | Cable splitter, wire pre-feeder, robot arm, conveyor belt, hot stamping machine, inkjet printer |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
| Dimensions | L 460 x W 470 x H 350 mm |
| Weight | 37 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
