Wire and Cable Measuring Winding Bundling Machine

JCW-WB05C

Compact, free-standing, fully-programmable and mobile device

Wind wire, cable and wire rope into coils or onto spools

Wind the required length of electrical, optical cables or other similar materials

Automatic cable laying device synchronized with rotational motion

Operation without constant, direct supervision

Precise feeding, uniform laying

Standard model uses 1.0x1.8mm iron core twist tie

Flat twist tie / special twist tie can be used by customize

Inquire Now

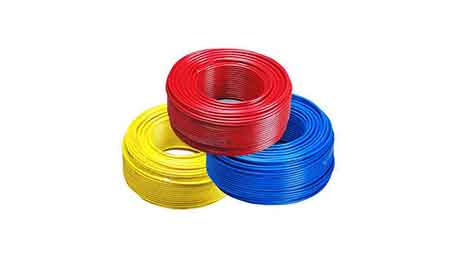

Cable Measure, Cut, Align, Wind & Bundle

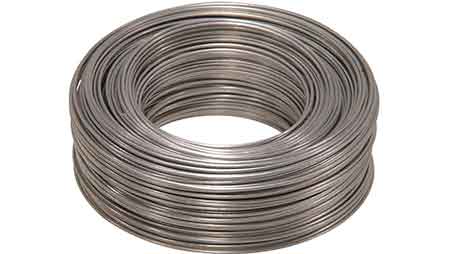

Steel Wire Rope Measure, Cut, Align, Wind & Bundle

Model	JCW-WB05C Wire and Cable Coiling Bundling Machine
Function	Measure cable, feeding length, laying cable, automatic cut cable, twist cable tie. Feeding speed, winding speed, winding cycles, twisting cycles, cable tie cut length.
Wire diameter	φ 1 - 15 mm [ Customizable ]
Cable tie length	200 - 300 mm [ Customizable]
Tying diameter	40-80 mm [ Optional 8-30 mm / 18 - 45 mm ]
Cable roll inner diameter	50 - 300 mm
Winding speed	1 - 10 cycles / s
Cable tie twist cycle time	0.6 S
Cable weight	3 KG [ Customizable to 50KG ]
Data library	100 programs
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable prefeeding machine
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 1500 x W 610 x H 1100 mm
Weight	150 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
