Automatic Wire Cutting to Terminating Machine

JCW-CST02S

Servo motorized wire terminating machine

Precise wire cutting and stripping

User-friendly interface

32AWG fine wire

Inquire Now

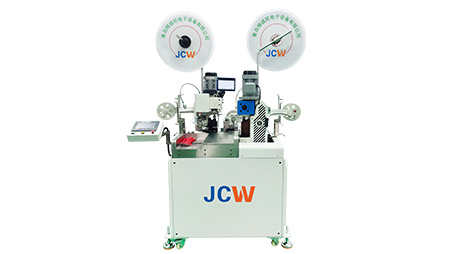

Crimp force monitor version

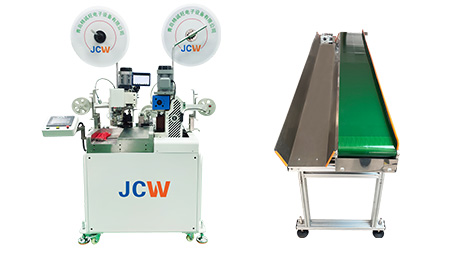

CFM & Conveyor

The JCW-CST02S is a fully servo-motorized dual-end wire crimping machine. High configuration provides high precision, especially for fine wires. Horizontal wire feeding mechanism and high-grade lead screw ensure stable and accurate wire feeding.

With crimp force monitor, this programmable double-end terminal machine provides high speed and high precision at the same time.

Model	JCW-CST02S Fully Automatic Servo Motorized Dual-end Wire Crimping Machine
Function	Wire measuring and cut into length, both sides: stripping to crimping. Cut depth, strip length, partial strip, air detection, wire lack detection, wire knot detection, crimping detection, data library
Wire cross-section	AWG 32 ~ AWG16 ( Customizable )
Strip length	1.5 - 10 mm
Cut length ( L )	45 - 99999 mm
Cut length tolerance	± 1mm + 0.002 x L
Crimp force	20KN (2.0 tons) [ 40 KN on request ]
Detector	Wire lack, Terminal crimping, Wire knot, Air pressure [ CFM on request ]
Production rate	3000-3800 pcs/hr ( L ≤100mm )
Data library	100 programs
Display	7" touch screen, English / Chinese [ other languages on request ]
Power supply	AC 220V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa [ Clean and dry air ]
Weight	550 KG
Dimensions	L 1410 × W 915 × H 1500 mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
