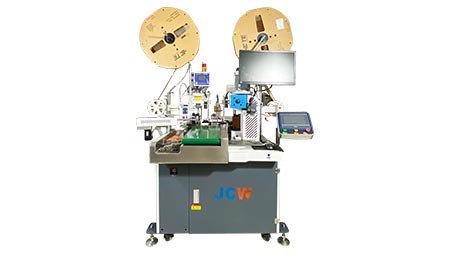

High-end 2-sided Wire Cut Strip and Terminate Machine
High-end 2-sided Wire Cut Strip and Terminate Machine
High-end 2-sided Wire Cut Strip and Terminate Machine
High-end 2-sided Wire Cut Strip and Terminate Machine

High-end 2-sided Wire Cut Strip and Terminate Machine

JCW-CST02S CCD

Vision detection system, CFM

Servo motorized wire prefeeder

Precise wire cutting and stripping

User-friendly interface

32AWG fine wire

Inquire Now
Add To Cart
CCD Camera Detect, CFM

CCD Camera Detect, CFM

ModelJCW-CST02S CCD Fully Automatic Servo Motorized Dual-end Wire Crimping Machine
Function

Wire measuring and cut into length, both sides: stripping to crimping. Cut depth, strip length, partial strip, air detection, wire lack detection, wire knot detection, crimping detection, data library

Wire cross-section

AWG 32 ~ AWG16 ( Customizable )

Strip length1.5 - 10 mm
Cut length ( L )45 - 99999 mm
Cut length tolerance± 1mm + 0.002 x L
Crimp force20KN (2.0 tons)  [ 40 KN on request ]
DetectorWire lack, Terminal crimping, Wire knot, Air pressure [ CFM, CCD on request ]
Production rate

3000-3800 pcs/hr ( L ≤100mm ) ( no CFM, no CCD )

Data library100 programs
Display7" touch screen, English / Chinese  [ other languages on request ]
Power supplyAC 220V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa [ Clean and dry air ]
Weight550 KG
Dimensions

L 1410 × W 915 × H 1500

CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
