JCW-CST10
Cross section: 0.05 - 2 mm² ( AWG30 -14 )
Cutting length: 41 - 999999 mm
Front stripping length: 0.5 - 8 mm
Rear stripping length: 0.1 - 10mm
Crimping force: 20 KN [ 40KN on request ]
2000 sets/h by 300mm wire length [ 3 SIDED CRIMPING ]
Display: English / Chinese [ Other languages on request ]

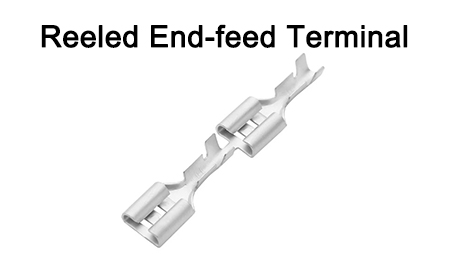

Compatible With Both Side-feed & End-feed Terminal

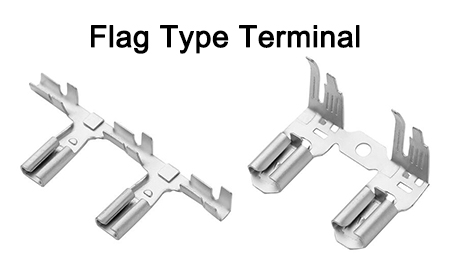

2 Wires & 3 Terminals Processing, Flag Terminal Crimping

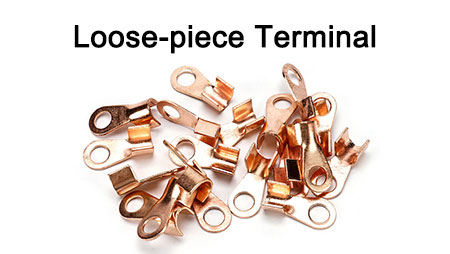

Automatic 2 Wires Joint Crimping Loose-piece Terminal
JCW-CST10 Fully Automatic Cutting Stripping and Crimping Machine

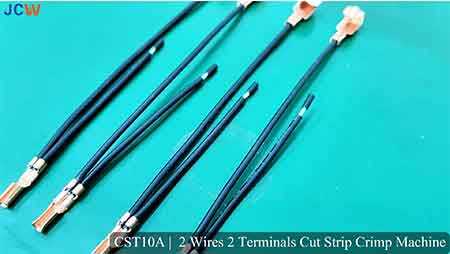

2 Wires, 3 Terminals, 3 Sided Crimping, 2 Wires into 1 Terminal
Feature of the machine
The JCW-CST10 is a highly flexible fully-auto wire stripping and crimping machine. This cut, strip and crimp machine is capable of processing 2 different sized wires and 3 different terminals, the wires range between 14 - 30AWG, at the same time with crimping on one end of each wire and then crimping the 2 wires together into 1 crimp terminal. All parameters such as wire data and crimp data can be saved and retrieved for future use.
High-quality processing and simple operation
To ensure product quality, JCW integrates high-quality components. Efficient stepper motors, highly rigid transmission structure, high-speed control system. User-friendly interface and 7" touch screen interface offers you accurate input and clear vision. The JCW-CST10 offers vivid detection functions, wire lack detection, wire knot detection, stripping detection, crimping detection, air pressure detection, etc.
Various options and peripherals
- Crimping force monitoring ( CFM )
- 4 tons crimping machine
- Wire prefeeder for keeping proper wire tension
- Conveyor belt for stacking finished wire
- Customize HMI, language & logo
| Model | JCW-CST10 Fully-auto Wires Cut Strip and Crimp Machine |
| Functions | 2 Wires, 3 Terminals, 3 Crimping Units, Cut depth, Crimp position, Pull-off length, Wire detector, Knot detector, Air pressure detector |
| Wire cross-section | 0.05 - 2 mm² ( AWG 30 - 14 ) |
| Cut length ( L ) | 41 - 99999 mm [ Short size on request ] |
| Cut accuracy | L＜100mm: 0.2 mm ± 0.002 x L |
| L＞100mm: 0.5 mm ± 0.002 x L | |
| Cut length increment | 0.01 mm, max 5.5 mm |
| Strip length | Front end: 0.5 - 8 mm |
| Rear-end: 0.1 - 10 mm | |
| Production rate | 2000 sets/h |
| Display | 7" touch screen, English / Chinese [other languages on request] |
| Data library | 100 programs |
| Crimping force | 20 KN ( 2.0 tons ) [40 KN on request] |
| Optional peripheral | Wire pre-feeder, CFM, wire stacker |
| Detection | Wire lack, Terminal crimping, Wire knot, Air pressure |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa [ clean and dry air ] |
| Dimensions | L 1000 x W 1600 x H 1800 mm |
| Weight | 550 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
