Economical automatic wire stripping machine

JCW-CS02 ECO

Discontinued model. After-sales service is still available.

Thin lead wire, short stripping

Wire range up top 4mm²

Best price, good performance

Touch screen, English display

Best choice for low-budget customers

No safety cover

Inquire Now

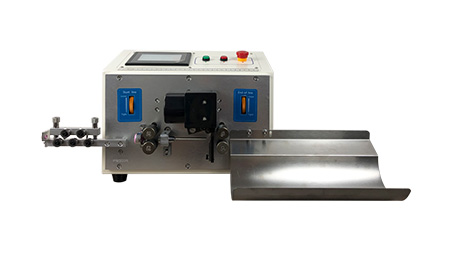

Best-priced Light Model Cut & Strip Machine

The JCW-CS02 ECO is the best low-priced automatic industrial-level wire stripping machine, quite cheap and useful. We developed it to satisfy customers with automated needs for wire stripping, but have small production volumes and are not ready to purchase high-priced multi-function machines.

Model	JCW-CS02 ECO Automatic wire stripping machine
Function	Wire measuring, Cut into length, Full stripping, Partial stripping, Middle strip, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass
Conductor cross-sections	0.03 - 4 mm²
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 50 mm [ Full stripping ]
Stripping length	Rear ( left ) side: 30mm [ Full stripping ]
Production rate	4100 pcs/h by 100mm wire length
Data library	100 programs
Display	4.3" color touchscreen, English / Chinese [ Other languages on request ]
Compatible peripherals	Wire prefeeder, robot arm, conveyor belt
Wire feeding	Metal roller [ Urethane roller on request ]
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 370 x W 400 x H 300 mm
Dimensions	Straightener: 150 mm
Weight	22 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
