JCW-322B CUT
All working areas of the machine are visible
Simple mechanical structure and high flexibility in use
Pneumatic equipment, no electricity required, safe and energy-saving
Quickly change the cutting tube and guide tube

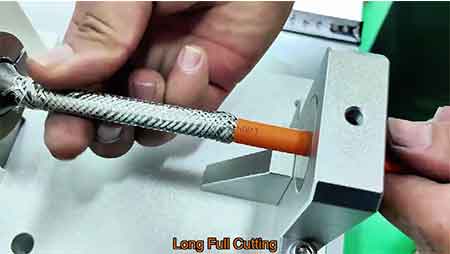

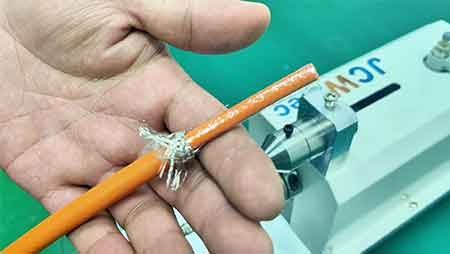

Partial cutting & full cutting
Process cables of different diameters
ShieldCut
| Model | JCW-322B CUT Pneumatic Cable Braid Shield Cutting Machine |
| Cable range | 4 - 70 mm² [ 120mm² version is optional ] |
| Shield diameter | 3 - 16 mm Capacity depends on braid material & hardness |
| Cutting length | Full cutting: 2 - 110 mm [ 250mm is optional ] Partial cutting: 2 - 70 mm |
| Compressed air | 0.5 - 0.8 MPa ( clean and dry air ) |
| Dimensions | L 410 x W 145 x H 155 mm |
| Weight | 5 KG Dimensions & weight vary |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
