Fully Automatic EV Charging Cable Cutting Stripping Machine

JCW-CS700

Rotate cable cutting and stripping machine

7" color touchscreen simplify programming

Big cable 3 mm to 23 mm O.D.

Automatic cutting length calibration

Servo-motorized machine, high performance

Inquire Now

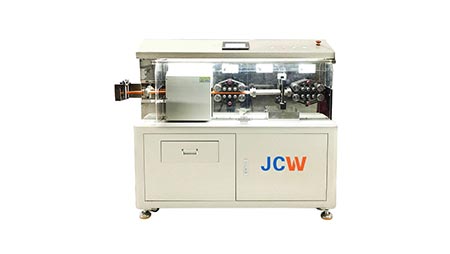

Standard Version Cable Cut Strip Platform

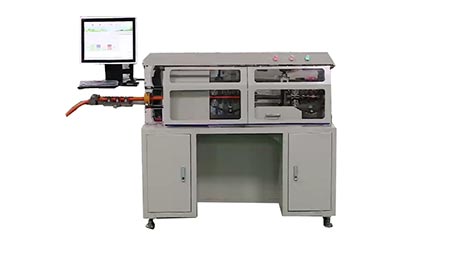

Computerized Smart Cable Cut Strip Platform

JCW-CS700 Fully Automatic EV / Coax Cable Cutting Stripping Machine

Rotate cutting and stripping machine

The JCW-CS700 is a fully automatic cable cutting and stripping machine, apply to heavy-duty coaxial cable, EV cable and BV cable, etc.

Servo-driven belt transfer system, ball screwdriver, supply precise wire length transfer, and position.

Unique rotary cutter head, strong power, offer precise cut without hurting conductor.

The belt feeding system guarantees precise wire transfer and protects the cable well.

User-friendly interface, color touch screen, easy operation.

Solid and transparent safety cover, offers clear vision and all-around protection.

Model	JCW-CS700 Fully Automatic EV / Coax Cable Cutting Stripping Machine
Function	Coaxial cable, EV cable, rotary cutting, cut depth, strip length
Cable diameter	3 - 23 mm
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.1 mm
Stripping length	Front ( right ) side: 200 mm
Stripping length	Rear ( left ) side: 250 mm
Production rate	350 - 750 pcs/h
Data library	100 programs
Rated power	1200 W
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Wire pre feeder, robot arm, conveyor belt
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 1430 x W 780 x H 1300 mm
Weight	320 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
