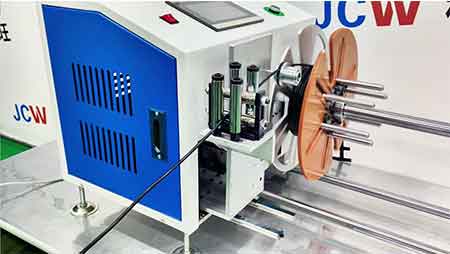

15KG Cable Align & Wind Machine

15KG Cable Align & Wind Machine

Model

JCW-WB04W Semi-auto Wire Align & Coil Machine

Function

Wind cable by order, set piece number of each layer, winding speed, winding cycles, loose wire roll, wire spool

Cutting diameter1- 8 mm [ Customizable ]
Wound inner diameter50 - 200 mm [ Customizable ]
Wound outer diameter210 / 270 / 310 mm optional & customizable
Wound width110 mm
Winding speed1 - 10 cycles / s
Load weight 1.5 KG [ 3.0KG / 15 KG versions are optional ]
DisplayColor touchscreen, English / Chinese  [ other languages on request ]
Rated power300 W
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
Dimensions

L 380 x W 750 x H 360 mm

Weight30 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
