Heavy-duty electric car charging cable
Cable O.D. 3 - 30mm, stripping length 200 mm
Multi-step stripping, max 9 steps
Precise cutting and stripping, 0.01mm accuracy
JCW-S600D

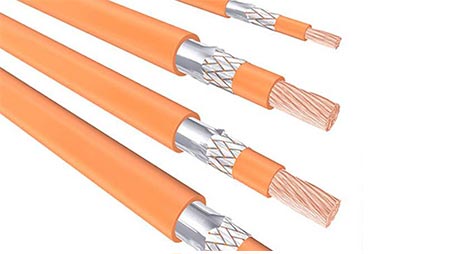

Heavy-duty electric car charging cable
Cable O.D. 3 - 30mm, stripping length 200 mm
Multi-step stripping, max 9 steps
Precise cutting and stripping, 0.01mm accuracy
Max 30mm EV High Voltage Cable Strip Machine
Model | JCW-S600D EV Charging Cable Stripping Machine |
Function | Coaxial cable, multistep stripping, rotary stripping, full stripping, partial stripping. |
Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
Cable diameter | 3 - 30 mm |
Stripping length | 0.1 - 200 mm |
Cutting depth increment | 0.01 mm |
Blades | 4 pcs |
Stripping steps | 9 |
Centralizer | Yes |
Data library | Yes |
OEM | Yes |
Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
Rated power | 800 W |
Power supply | AC 110 / 220 V ± 10%, 50 / 60 Hz |
Dimensions | L 1000 x W 335 x H 500 mm |
Weight | 145 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
