Constantly working
Single or double-sides heating
Half-open shrink tunnel, digital controller
Cooling delay, emergency stop button, safe operation
Adjustable temperature, feeding speed, and heating zone width
JCW-HSB65
Constantly working
Single or double-sides heating
Half-open shrink tunnel, digital controller
Cooling delay, emergency stop button, safe operation
Adjustable temperature, feeding speed, and heating zone width

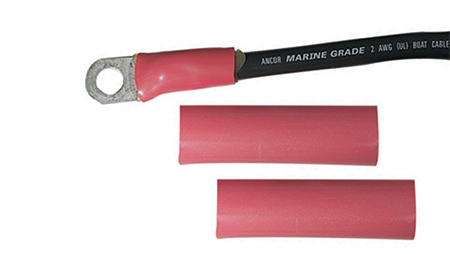

Heat Shrinkable Terminal Insulating Tubing
Heat Shrinkable Busbar Insulating Tubing

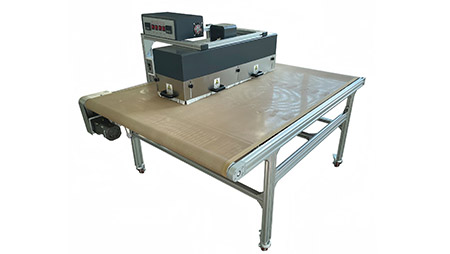

Model | JCW-HSB65 Flexible Heat Shrinkable Sleeve Processing System |
Heating method | Thermal radiation, single-sided heating, double-sided heating |
Oven dimensions | 1000 x 400 x 280 mm [ Customizable ] |
Heating area | 1000 x 360 x 100mm [ Customizable ] |
Belt material | PTFE mesh conveyor |
Feeding speed | 0 - 6 m / min |
Temperature display | Digital |
Working life | > 10000 h |
Temperature | 260℃ [ 300℃ on request ] |
Heater accuracy | ±5℃ |
Hot air fan | YES |
Cooling station | YES |
Rated power | 7200 W [ Customizable ] |
Power supply | AC 380 V ± 10% [ 220 V on request ], 50 / 60 Hz |
Dimensions | L 1600x W 700 x H 1200 mm [ Customizable ] |
Weight | 105 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
