Electric Heat Shrink Tubing Processing Machine

JCW-HSB2050

Electric model needs no compressed air

Apply to hook up wire harness, HV cable, etc

Use resistance wire to heat, fast heating, and low energy consumption

High-speed fan, even heat distribution

Using delay designer, heat shrink time can be adjusted

Max heating temperature 450 degrees, can be set freely

Double-layer box with high-temperature cotton

Inquire Now

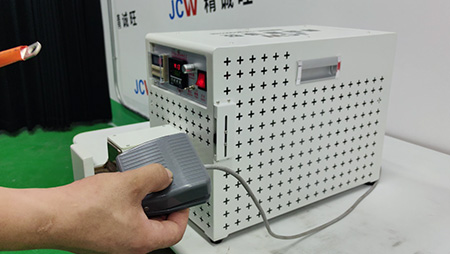

Foot switch start mode

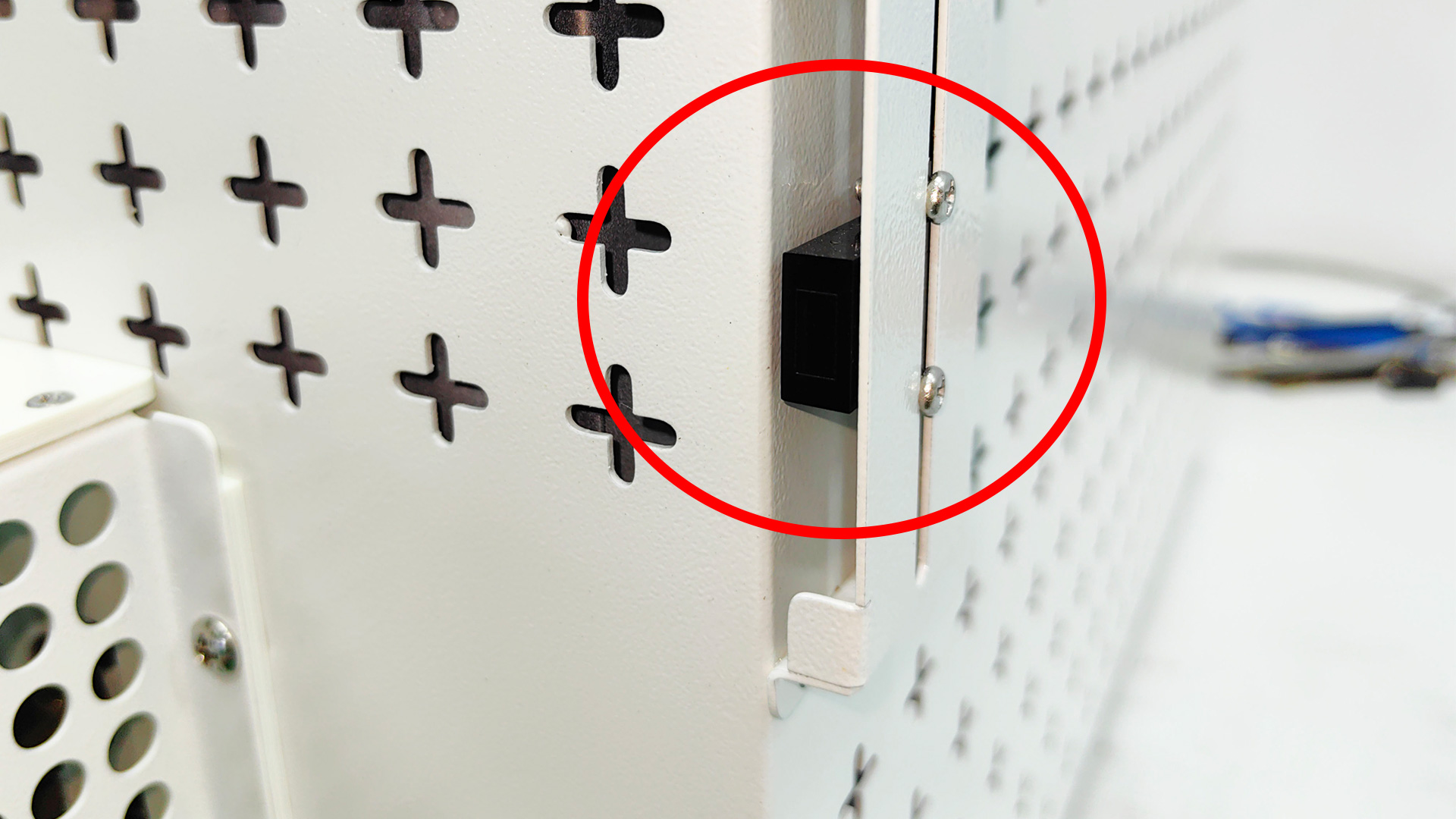

Induction start mode

Model	JCW-HSB2050 Electric Heat Shrink Tubing Processing Machine
Function	Heating temperature, heating time, changeable nozzle
Heating temperature	0 - 450℃
Heating method	Resistance wire
Heating diameter	20 mm [ 30 mm on request ]
Heating length	50 mm [ 60 mm on request ]
Air output volume	580 L / m, adjustable
Product rate	450 - 900 pcs/h ( depending on the product )
Startup method	Footswitch/sensor
Rated power	2000 W [ 3000W on request ]
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 445 x W 220 x H 340 mm
Weight	15 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
