Infrared Heating Machine For Heat Shrinkable Tubing

JCW-HSB18

Shrinkage by infrared radiation

Approximate semi-enclosed annular heating

Induction trigger, automatic heating

Automatic circulation heating mode

Heat insulation design

Material dimensions φ25 x L130mm

Inquire Now

Annular Infrared Workbench Heat Shrink Machine

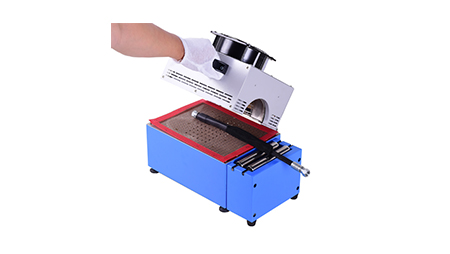

JCW-HSB18 Infrared Workbench Heat Shrinkable Tubing Processing Equipment

Infrared: Shrinking Tube Control System

JCW-HSB18 heat-shrinkable tube processing equipment adopts an annular infrared radiation heating method to increase the uniformity of heating. Independent heating and control systems, the heating time can be set freely, and it can work continuously for 24 hours. With a variety of control methods: manual triggering to start heating, or automatic cycle heating start-stop mode. The heating time and stop time can be adjusted freely according to actual needs.

Heating Zone Thermal Insulation Design

Double-layer design of the heating zone shell, isolate the temperature inside and outside, reduces airframe surface temperature to protect operators.

Model	JCW-HSB18 Infrared Workbench Heat Shrinkable Tubing Processing Equipment
Heating length	130 mm
Material diameter	Max φ 25 mm
Heating pipe	4 pieces
Rated power	2300 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	Controller: L 220 x W 150 x H 152 mm
Dimensions	Heater: L 400 x W 225 x H 350 mm
Weight	17 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
