Updated model of CST11
Higher flexibility on terminal crimping & sealing
Fully programmable model, user-friendly display
CFM, wire prefeeder, wire stacker are all optional
JCW-CST11D
Updated model of CST11
Higher flexibility on terminal crimping & sealing
Fully programmable model, user-friendly display
CFM, wire prefeeder, wire stacker are all optional
Cost-effective Automatic Wire Sealing-to-Crimping Machine

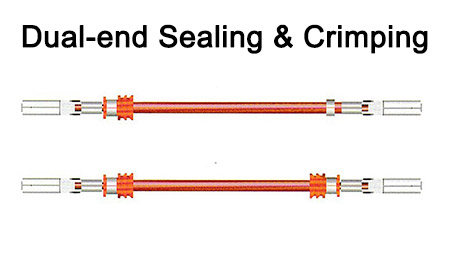

Model | JCW-CST11D Dual-end Terminal Crimping Single-end Wire Sealing Machine |
Function | Wire measuring and cut into length, Double sides stripping & terminal crimping, Single side sealing, Sealing alarm, Sequence work |
Wire range | 0.08 - 1.3 mm² [ Customizable ] |
Seal type | O.D. x Length ≤ φ 15 14 |
Cut length ( L ) | 50 - 99999 mm |
Cut length accuracy | 1 mm ± 0.002 x L |
Strip length | 1.5 - 10 mm |
Crimping force | 2 tons [ 3 tons on request ] |
Display | 7" touch screen, English / Chinese [ other languages on request ] |
Data library | 100 programs |
Product rate | 3000 pcs/h by 100 mm wire length [ Sealing & Crimping ] |
Air supply | 0.4 - 0.6 MPa [ clean and dry air ] |
Power supply | AC 110 - 220V ± 10%, 50 / 60 Hz |
Dimensions | L 800 x W 1000 x H 1500 mm |
Weight | 450 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
