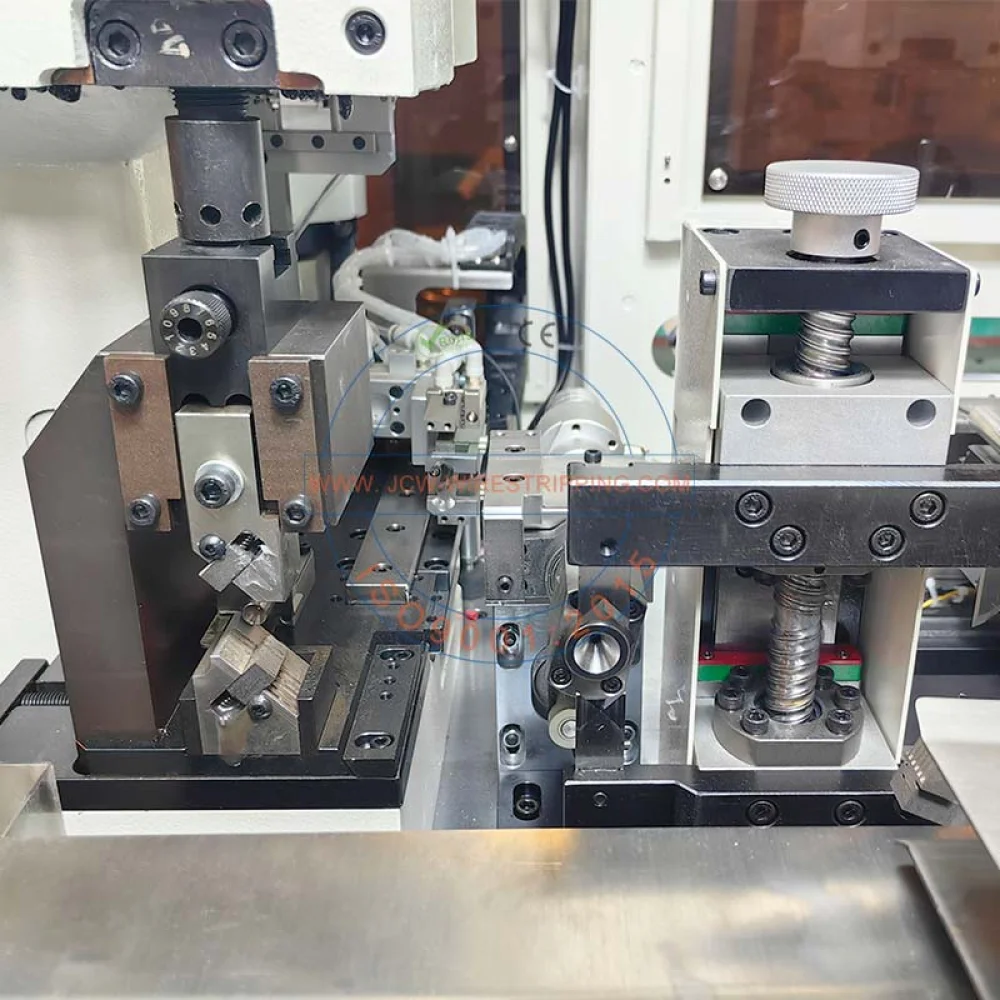

Bulk Pre-insulated Terminal Crimping Machine

JCW-CST02 INSU-L

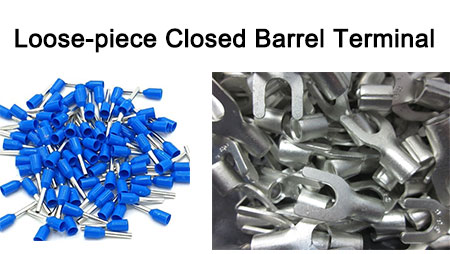

Crimping all kinds of bulk terminals automatically

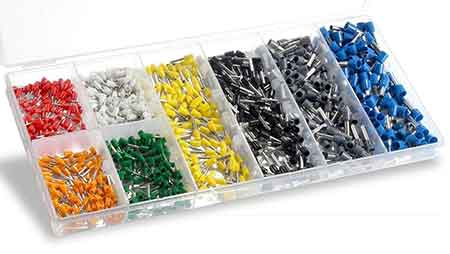

All insulated terminal and non-insulated terminals can be processed

Brand new design, fully covered safety guard, interlock sensor on request

Servo model crimping press located terminals before crimping

Inquire Now

Insulated & non-insulated

Model	JCW-CST02 INSU-L Fully Automated Wire Cutting Insulated Terminal Crimping Machine
Function	Wire cutting, Single / Dual-end strip and twist, Single / Dual-end crimp, Cut depth, Pull-off length, Insulated terminal, non-insulated terminal, etc
Wire cross-section	0.1 - 2 mm² ( AWG 28 -14 ) [ can be custom ]
Strip length	1.5 - 10 mm
Cut length ( L )	45 - 99999 mm
Cut length tolerance	± 1mm + 0.002 x L
Crimp force	20KN (2.0 tons) [ 40 KN on request ] [ Servo model ]
Detector	Wire lack, Terminal crimping, Wire knot, Air pressure [ CFM on request ]
Production rate	900 - 10000 pcs/h by 100 mm wire length, insulated terminal
Display	7" touch screen, English / Chinese [ other languages on request ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.6 MPa [ Clean and dry air ]
Weight	430 KG
Dimensions	L 1100 x W 900 x H 1500mm Straightener: 800 mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
