Terminal Insulation Cover Fitting and Wire Crimping Machine

JCW-CM04 Series

Customizable machines series

Single / Dual-end sleeve insertion

Single / Double wires Crimping

Fully servo motorized

Both side-feed and end-feed terminals

Inquire Now

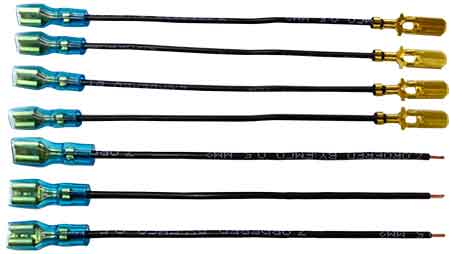

Custom-made wire strip to terminal insulation sleeve terminate

JCW-CM04 Series Insulated Sleeve Insertion and Wire Crimping Machine

The JCW-CM04 series machines are modular designed wire crimping machines, which allow wire cutting and stripping, insulated sleeve insertion, and terminal crimping.

We offer several models for selection, from single wire to two wires and three terminals processing.

For joint crimping, two wires can be placed in a parallel position of vertical position to meet different production needs.

All of the processing parameters, such as stripping length, cutting length, crimping force, feeding speed, etc are programmable.

7" LCD touch screen and user-friendly interface give intuitive operation, it ensures the accuracy of input and program.

The JCW-CM04 series automatic wire crimping machines adopt servo-driven systems, high-quality parts and various automatic detections to guarantee high-speed and stable performance.

The JCW-CM04 automatic sleeve insertion and wire crimping machines are compatible with different crimping applicators. The changeover is fast and easy.

Model	JCW-CM04 Series Insulated Sleeve Insertion and Wire Crimping Machine
Function	Single / Dual-end strip, Single / Dual-end crimp, Single / Dual-end sleeve insertion, Vibrate bowl, Cut depth, Pull-off length, Crimp position
Conductor cross-section	0.03 - 2 mm²
Stripping length	0.1 - 15 mm
Cutting length	80 - 3000 mm
Crimping force	20 KN ( 2.0 tons )
Rated power	1500 ~ 2800W
Power supply	AC 110 - 220V ± 10%, 50 / 60Hz
Air supply	0.5 - 0.7 MPa [ Clean and dry air ]
Detection	Wire lack, Wire jam, Stripping, Crimping, Air pressure
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
